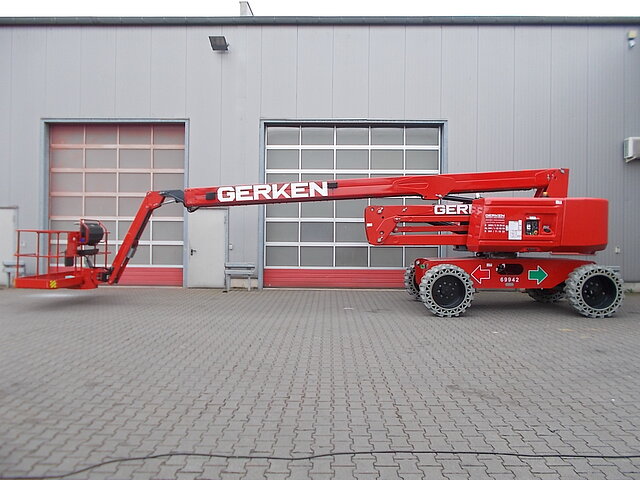

GG 265-25 WAkLPR
| Max. Working height | 26,36 m |
|---|---|
| Movable up to working height | 24,36 m |
| Max. Pitch angle | 45% |
| Four-wheel drive | ja |
| Drive type | Diesel |
| Non-Marking | ja |
| Construction width | 2,48 m |
| Overall dimensions LxWxH | 11.84 x 2.48 x 2.97 m |
| Ground clearance | 0,27 m |
| Transport position height | 3,07 m |
| Transport position length | 9,41 m |
| Surplus | 0,75 m |
| Dead weight | 15800 kg |
| Track widening | – |
| Platform dimensions WxD | 2.41 x 1.11 m |
| Max. Basket load / Lifting load | 350 kg |
| Swing axle | ja |
| Soot particle filter | ja |
| Basket arm | ja |
| Swivel range | 360°/endless |
| Rotating work basket | ja/180° ja/180° ja/180° ja/180° ja/180° ja/180° ja/180 |
| Max. lateral reach | 17,60 m |
| Special features | Abrasion-free off-road tires, very off-road capable, upper carriage can be rotated endlessly, high basket load |
