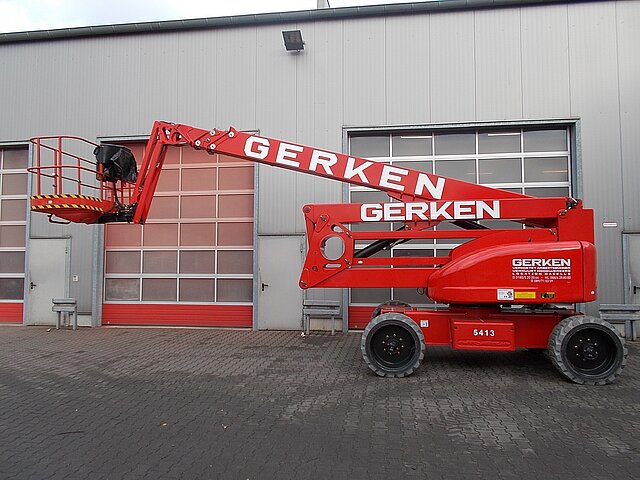

GG 280-25 AWkPHR
| Max. Working height | 27,97 m |
|---|---|
| Movable up to working height | 27,97 m |
| Max. Pitch angle | 45% |
| Four-wheel drive | ja |
| Drive type | Hybrid |
| Non-Marking | ja |
| Overall dimensions LxWxH | 9.26 x 2.49 x 2.63 m |
| Transport position length | 7,30 m |
| Construction width | 2,49 m |
| Transport position height | 2,63 m |
| Ground clearance | 0,21 m |
| Surplus | 0,50 m |
| Dead weight | 14660 kg |
| Track widening | no |
| Platform dimensions WxD | 2.40 x 0.91 m |
| Max. Basket load / Lifting load | 280 kg |
| Swing axle | ja |
| Soot particle filter | ja |
| Basket arm | ja |
| Swivel range | 360° |
| Rotating work basket | ja/180° ja/180° ja/180° ja/180° ja/180° ja/180° ja/180 |
| Max. lateral reach | 19,36 m |
| Special features | Hybrid drive, machine can be used on slopes of up to 5°. |
