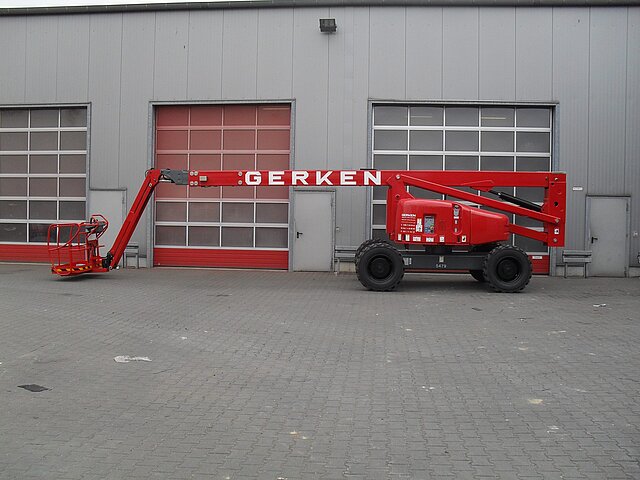

GG 260-24 AkLG
| Max. Working height | 25,60 m |
|---|---|
| Movable up to working height | 25,60 m |
| Max. Pitch angle | 40% |
| Four-wheel drive | no |
| Drive type | Diesel |
| Non-Marking | no |
| Construction width | 2,38 m |
| Overall dimensions LxWxH | 12.01 x 2.38 x 2.71 m |
| Ground clearance | 0,30 m |
| Transport position height | 3,24 m |
| Transport position length | 9,59 m |
| Surplus | 0,42 m |
| Dead weight | 15950 kg |
| Track widening | – |
| Platform dimensions WxD | 1.80 x 0.74 m |
| Max. Basket load / Lifting load | 230 kg |
| Swing axle | no |
| Basket arm | ja |
| Swivel range | 360° |
| Rotating work basket | ja |
| Max. lateral reach | 16,10 m |
