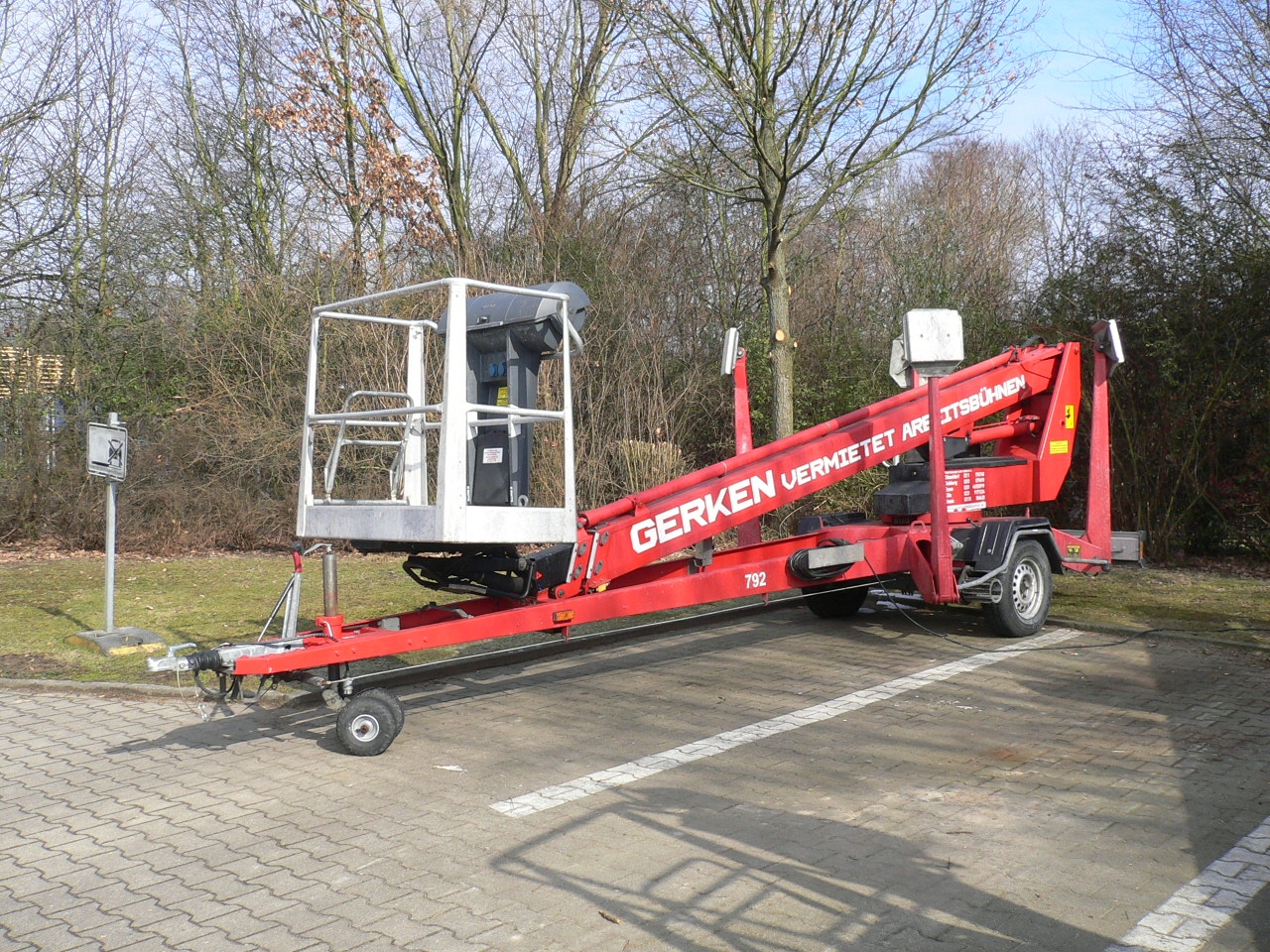

GA 18 G
Max. Working height18,05 m
Max. Basket load / Lifting load215 kg
Construction width1,85 m
Price on request
Secure online payment:
PayPal
Invoice
Certified by Trusted Shops!
Data sheet
| Max. Working height | 18,05 m |
|---|---|
| Max. lateral reach | 11,10 m |
| Max. Basket load / Lifting load | 215 kg |
| Overall dimensions LxWxH | 7.43 x 1.85 x 2.10 m |
| Transport position length | 7,43 m |
| Construction width | 1,85 m |
| Transport position height | 2,10 m |
| Drive type | 230 V |
| Dead weight | 1780 kg |
| Max. Platform height | 16,05 m |
| Platform dimensions LxW | 1,40 x 0,80 m |
| Supports | Ja |
| Support pressure max. | 13 kN |
| Support load | 75 kg kg |
| Support width on both sides | 4,29 m |
| Support diagonal | - |
| Support length | 3,88 m |
| Ground clearance | 0,20 m |
| Rotating work basket | ja |
| Basket arm, rotation angle | no- |
| Indoor use only | no |
| Shunting drive | ja |
| Swivel range | endless |
| Special features | Low dead weight |
