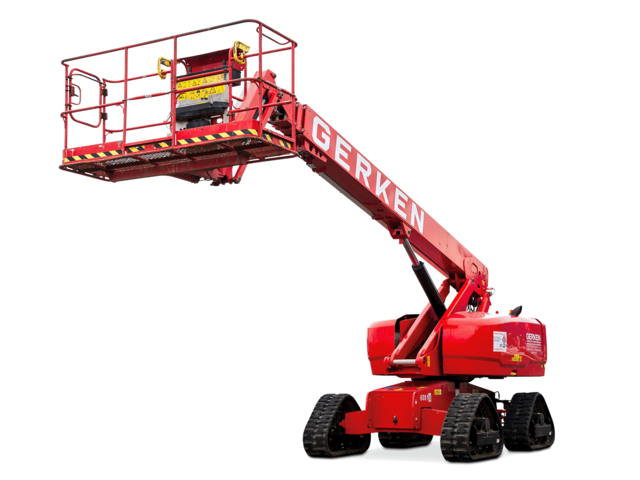

GTT 220-25 AkPRG
| Max. Working height | 21,86 m |
|---|---|
| Movable up to working height | 21,86 m |
| Max. Pitch angle | 45% |
| Four-wheel drive | ja |
| Drive type | Diesel/4x4 |
| Non-Marking | no |
| Overall dimensions LxWxH | 9.78 x 2.58 x 2.79 m |
| Transport position length | 9,78 m |
| Construction width | 2,58 m |
| Transport position height | 2,79 m |
| Surplus | 1,40 m |
| Ground clearance | 0,30 m |
| Dead weight | 13016 kg |
| Track widening | no |
| Platform dimensions WxD | 2.44 x 0.92 m |
| Max. Basket load / Lifting load | 454 kg |
| Soot particle filter | ja |
| Basket arm | ja |
| Swivel range | 360° |
| Rotating work basket | ja |
| Max. lateral reach | 16,51 m |
| Special features | Optionally available with 4 m basket (change of basket load to 272 kg) |
