GTK 224-25 k
| Max. Working height | 22,38 m |
|---|---|
| Movable up to working height | 22,38 m |
| Max. Pitch angle | 55 % |

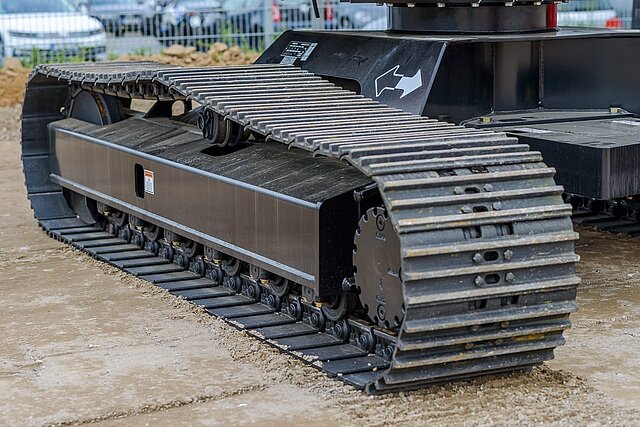

| Four-wheel drive | Chain drive |
| Drive type | Diesel |
| Non-Marking | ja |
| Overall dimensions LxWxH | 10.23 x 2.49 x 2.54 m |
| Transport position length | 8,10 m |
| Construction width | 2,49 m |
| Transport position height | 3,11 m |
| Surplus | 1,13 m |
| Ground clearance | 0,42 m |
| Dead weight | 12158 kg |
| Track widening | no |
| Platform dimensions WxD | 2.44 x 0.91 m |
| Max. Basket load / Lifting load | 230 kg |
| Basket arm | ja |
| Swivel range | endless |
| Rotating work basket | ja |
| Max. lateral reach | 17,80 m |
