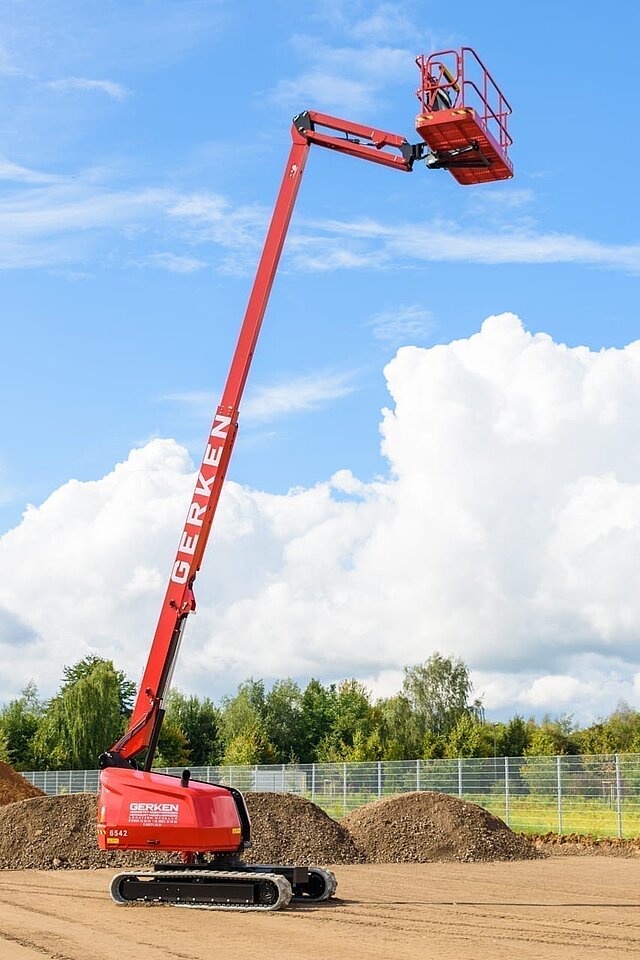

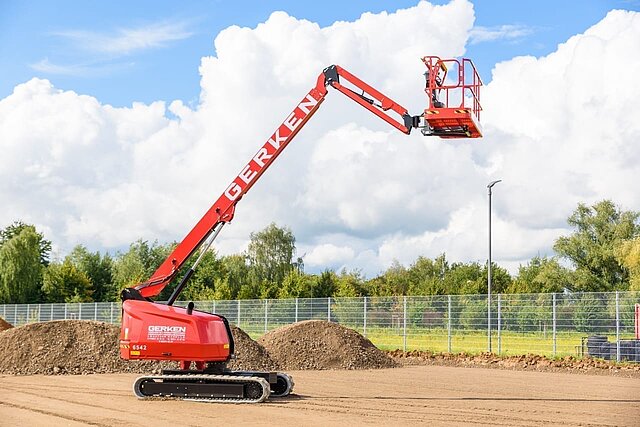

GTK 160-23 k
| Max. Working height | 15,97 m |
|---|---|
| Movable up to working height | 15,97 m |
| Max. Pitch angle | 51 % |

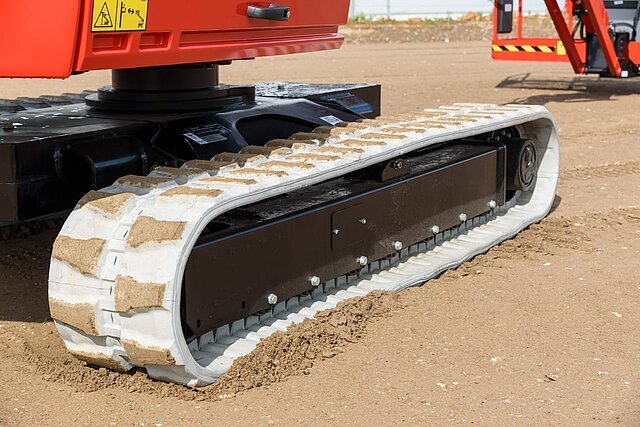

| Four-wheel drive | Chain drive |
| Drive type | Diesel |
| Non-Marking | ja |
| Overall dimensions LxWxH | 9.57 x 2.24 x 2.29 m |
| Transport position length | 8,92 m |
| Construction width | 2,24 m |
| Transport position height | 2,29 m |
| Surplus | 0,97 m |
| Ground clearance | 0,31 m |
| Dead weight | 8150 kg |
| Track widening | no |
| Platform dimensions WxD | 2.44 x 0.92 m |
| Max. Basket load / Lifting load | 270 kg |
| Basket arm | ja |
| Swivel range | endless |
| Rotating work basket | ja |
| Max. lateral reach | 12,75 m |
