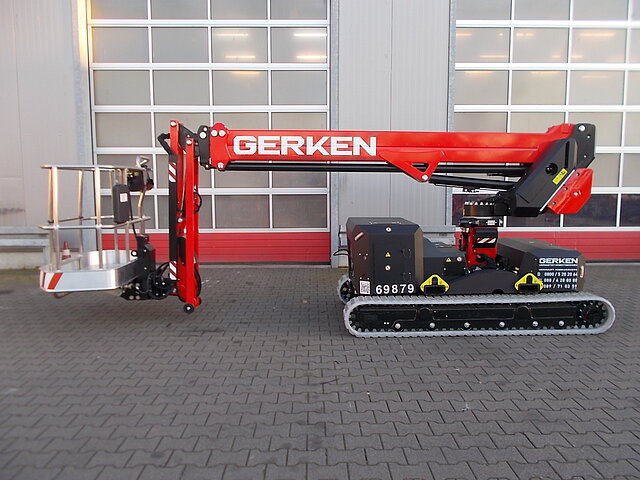

GTK 160-14(E) Wk
| Max. Working height | 15,70 m |
|---|---|
| Movable up to working height | 7,41 m |
| Max. Pitch angle | 45% |
| Four-wheel drive | Chain drive |
| Drive type | Electric |
| Non-Marking | ja |
| Overall dimensions LxWxH | 5.21 x 1.35 x 1.99 m |
| Transport position length | 4,69 m |
| Construction width | 1,35 m |
| Transport position height | 1,99 m |
| Surplus | - |
| Ground clearance | 0,11 m |
| Dead weight | 3880 kg |
| Track widening | 2,45 m |
| Platform dimensions WxD | 1.27 x 0.73 m |
| Max. Basket load / Lifting load | 230 kg |
| Basket arm | ja |
| Swivel range | 2 x 110° / 220° |
| Rotating work basket | yes, 2 x 70° / 140° |
| Max. lateral reach | 8,35 m |
