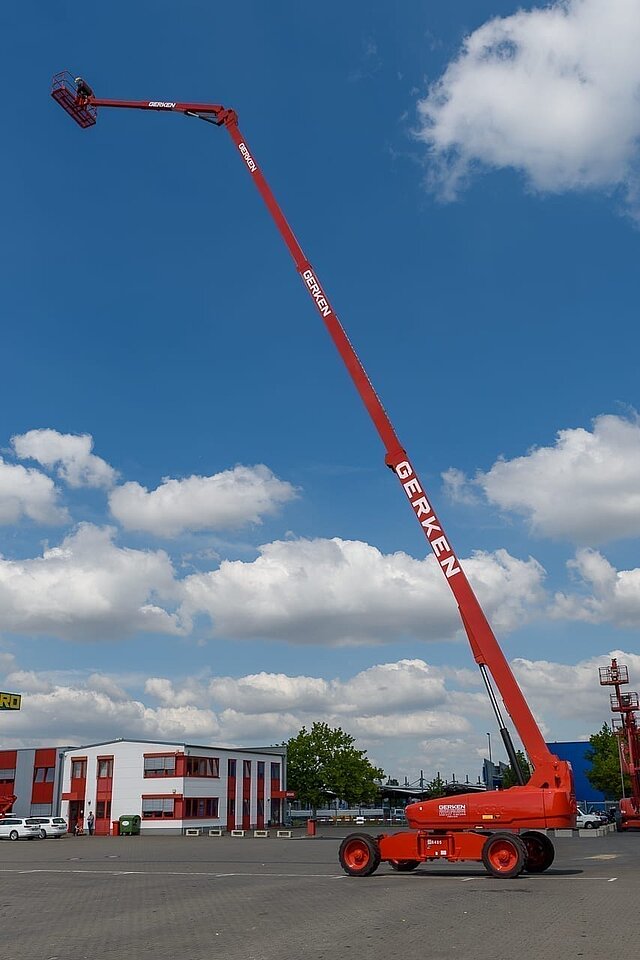

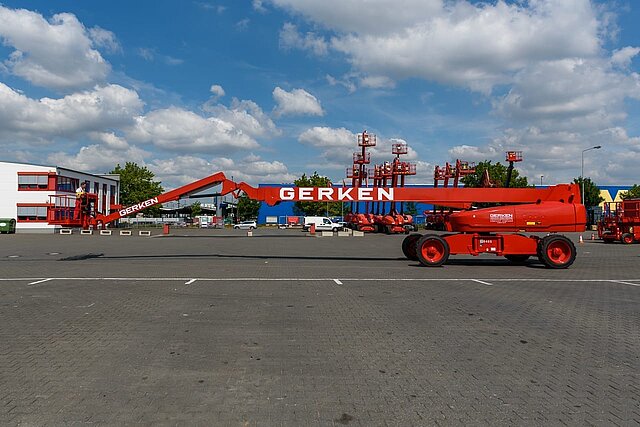

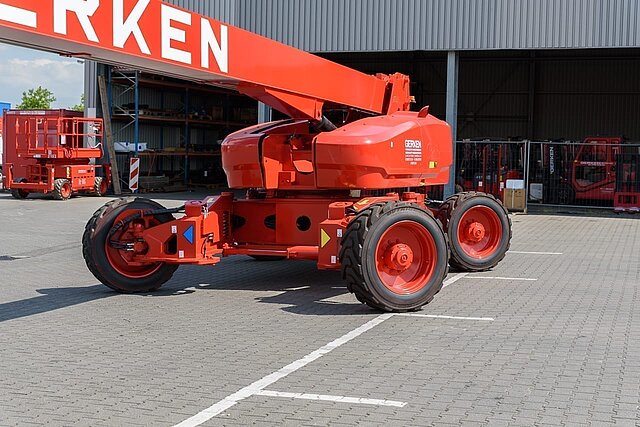

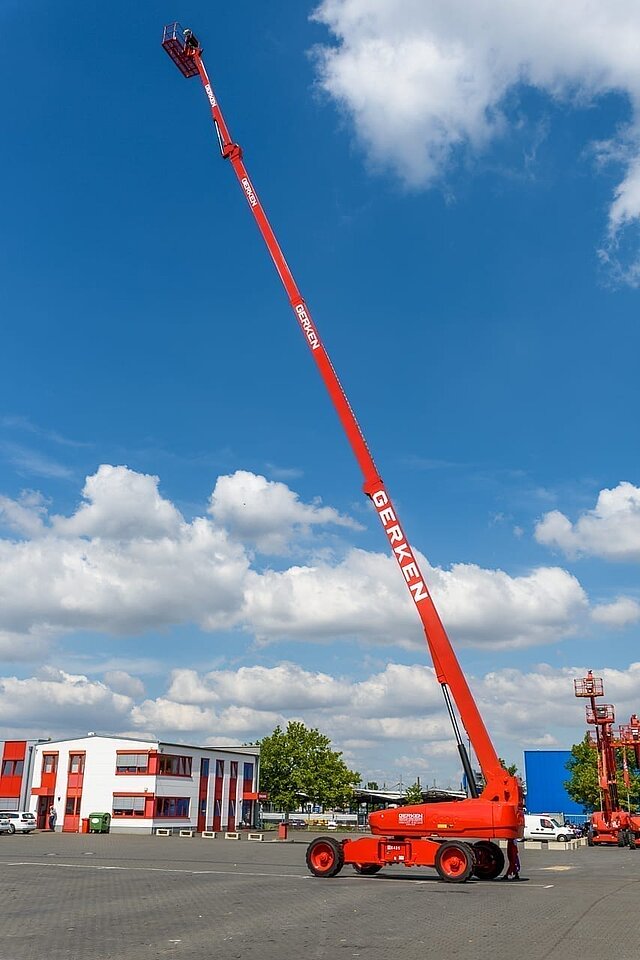

GT 431-25 AkLG
| Max. Working height | 43,11 m |
|---|---|
| Movable up to working height | 43,11 m |
| Max. Pitch angle | 35 % |
| Four-wheel drive | ja |
| Drive type | Diesel |
| Non-Marking | no |
| Overall dimensions LxWxH | 20.28 x 2.50 x 3.08 m |
| Transport position length | 13,10 m |
| Construction width | 2,50 m |
| Transport position height | 3,08 m |
| Ground clearance | 0,37 m |
| Surplus | 1,71 m |
| Dead weight | 21664 kg |
| Track widening | 3,98 m |
| Platform dimensions WxD | 2.44 x 0.92 m |
| Max. Basket load / Lifting load | 454 kg |
| Swing axle | no |
| Basket arm | ja |
| Swivel range | 360° |
| Rotating work basket | ja |
| Max. lateral reach | 28,30 m |
| Special features | Extremely long lateral reach, high cage load, ideal working diagram thanks to the 9.14 meter long cage boom, narrow platform in relation to the working height, active protection system against clamping accidents |
