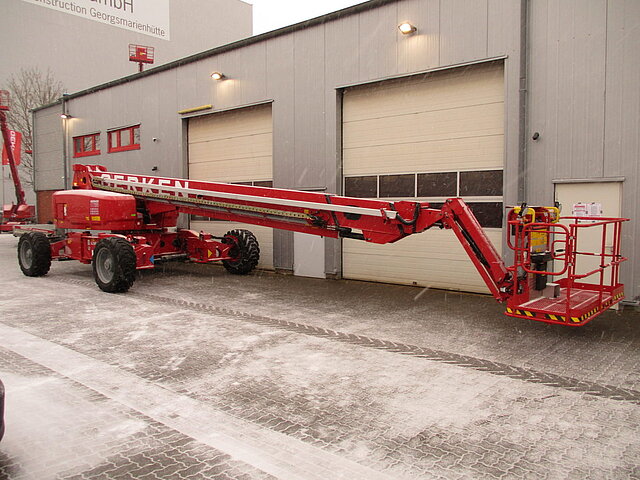

GT 400-25 AkLRG
| Max. Working height | 39,80 m |
|---|---|
| Movable up to working height | 39,80 m |
| Max. Pitch angle | 40% |
| Four-wheel drive | ja |
| Drive type | Diesel |
| Non-Marking | no |
| Overall dimensions LxWxH | 14.20 x 3.99 x 3.15 m |
| Transport position length | 12,34 m |
| Construction width | 3,99 m |
| Transport position height | 3,15 m |
| Ground clearance | 0,35 m |
| Surplus | 0,33 m |
| Dead weight | 20685 kg |
| Track widening | 3,52 m |
| Platform dimensions WxD | 2.45 x 1.11 m |
| Max. Basket load / Lifting load | 454 kg |
| Swing axle | no |
| Soot particle filter | ja |
| Basket arm | ja |
| Swivel range | 360° |
| Rotating work basket | I/ 160° |
| Max. lateral reach | 25,30 m |
| Special features | High basket load |
