GH 111 S
| Max. Working height | 11,10 m |
|---|---|
| Drive type | 230 V |
| Overall dimensions LxWxH | 1.40 x 0.56 x 1.98 m |
| Transport position length | 1,40 m |
| Construction width | 0,56 m |
| Transport position height | 1,98 m |
| Ground clearance | 0,05 m |

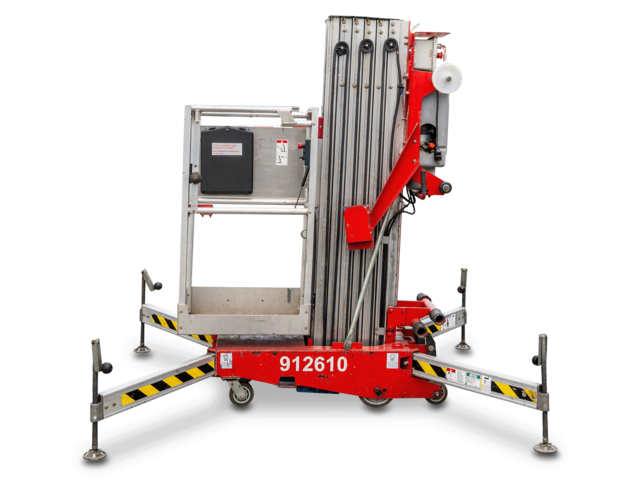

| Supports | ja |
| Support pressure max. | 4 kN |
| Support dimension LxW | 2.11 x 1.88 m |
| Wall clearance front side | 0,23 / 0,51 m |
| Dead weight | 349 kg |
| Platform dimensions WxD | 0.50 x 0.66 m |
| Max. Basket load / Lifting load | 159 kg |
| Special features | Particularly narrow work basket |
