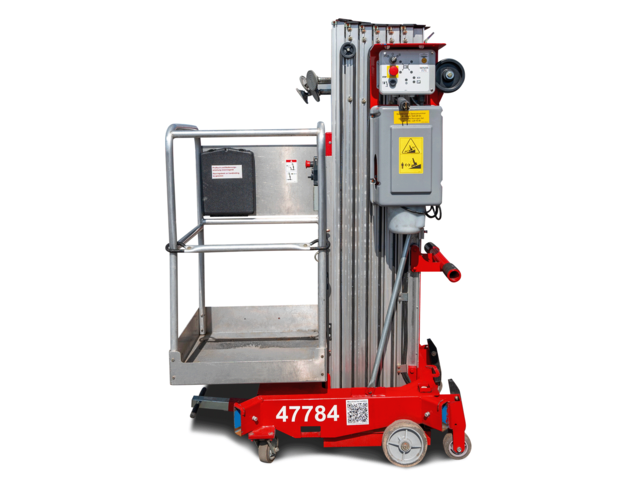

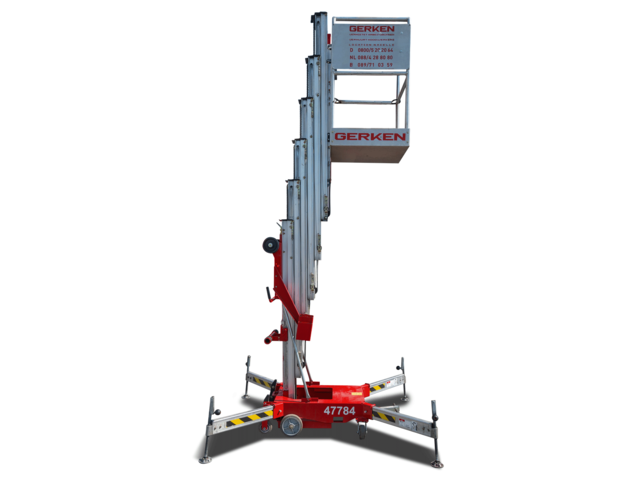

GH 111
| Max. Working height | 11,10 m |
|---|---|
| Drive type | 230 V |
| Overall dimensions LxWxH | 1.35 x 0.74 x 1.98 m |
| Transport position length | 1,35 m |
| Construction width | 0,74 m |
| Transport position height | 1,98 m |
| Ground clearance | 0,05 m |
| Supports | ja |
| Support pressure max. | 4 kN |
| Support dimension LxW | 1.93 x 1.73 m |
| Wall clearance front side | 0,20 / 0,53 m |
| Dead weight | 356 kg |
| Platform dimensions WxD | 0.66 x 0.69 m |
| Max. Basket load / Lifting load | 159 kg |
