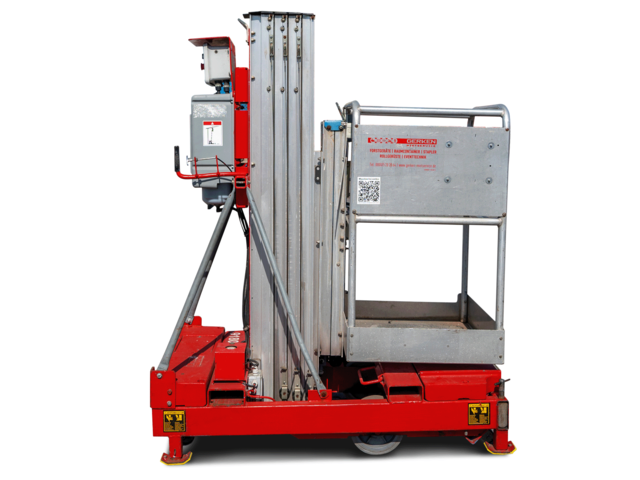

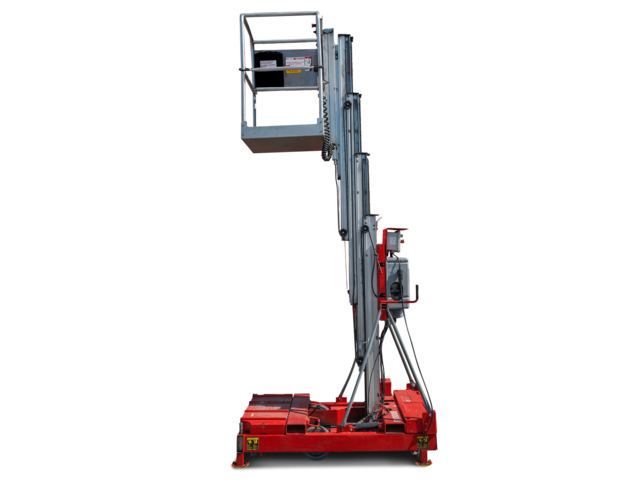

GH 083
| Max. Working height | 8,30 m |
|---|---|
| Drive type | 230 V |
| Overall dimensions LxWxH | 1.52 x 0.81 x 1.93 m |
| Transport position length | 1,52 m |
| Construction width | 0,81 m |
| Transport position height | 1,93 m |
| Ground clearance | 0,05 m |
| Supports | ja |
| Support pressure max. | 4 kN |
| Support dimension LxW | 1.52 x 0.81 m |
| Wall clearance front side | 0 m |
| Dead weight | 611 kg |
| Platform dimensions WxD | 0.66 x 0.69 m |
| Max. Basket load / Lifting load | 159 kg |
| Special features | Very compact device dimensions in working position |
