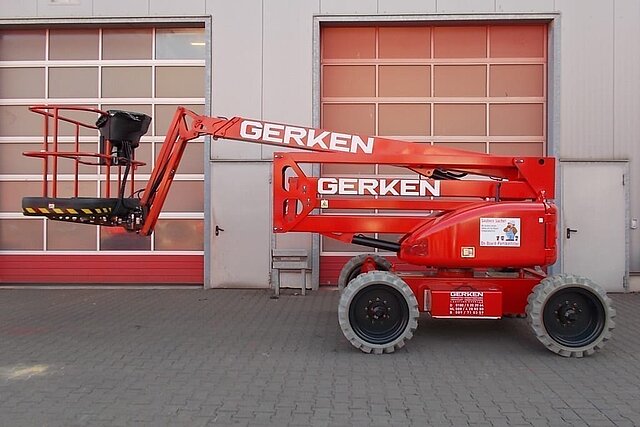

GG 173-20 AWkHR
| Max. Working height | 17,33 m |
|---|---|
| Movable up to working height | 17,33 m |
| Max. Pitch angle | 45% |
| Four-wheel drive | ja |
| Drive type | Hybrid |
| Non-Marking | ja |
| Overall dimensions LxWxH | 6.38 x 2.01 x 2.13 m |
| Transport position length | 4,83 m |
| Construction width | 2,01 m |
| Transport position height | 2,13 m |
| Ground clearance | 0,19 m |
| Surplus | 0,10 m |
| Dead weight | 5045 kg |
| Track widening | – |
| Platform dimensions WxD | 1.72 x 0.78 m |
| Max. Basket load / Lifting load | 225 kg |
| Swing axle | no |
| Soot particle filter | ja |
| Basket arm | ja |
| Swivel range | 355° |
| Rotating work basket | ja/180° ja/180° ja/180° ja/180° ja/180° ja/180° ja/180 |
| Max. lateral reach | 9,60 m |
| Special features | Hybrid drive, very lightweight device |
