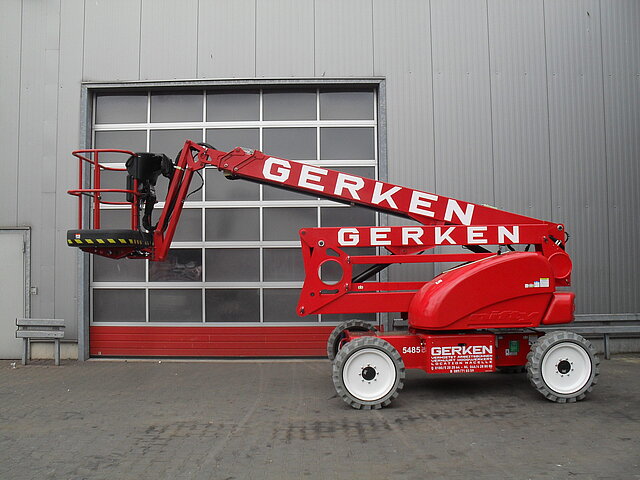

GG 210-23 AWkPHR
| Max. Working height | 20,81 m |
|---|---|
| Movable up to working height | 20,80 m |
| Max. Pitch angle | 40% |
| Four-wheel drive | ja |
| Drive type | Hybrid |
| Non-Marking | ja |
| Overall dimensions LxWxH | 6.50 x 2.29 x 2.15 m |
| Transport position length | 5,30 m |
| Construction width | 2,29 m |
| Transport position height | 2,15 m |
| Ground clearance | 0,16 m |
| Surplus | 0,46 m |
| Dead weight | 6512 kg |
| Track widening | - |
| Platform dimensions WxD | 1.80 x 0.86 m |
| Max. Basket load / Lifting load | 225 kg |
| Swing axle | ja |
| Soot particle filter | ja |
| Basket arm | ja |
| Swivel range | 355° |
| Rotating work basket | ja/100° |
| Max. lateral reach | 13,02 m |
| Special features | Hybrid drive |
