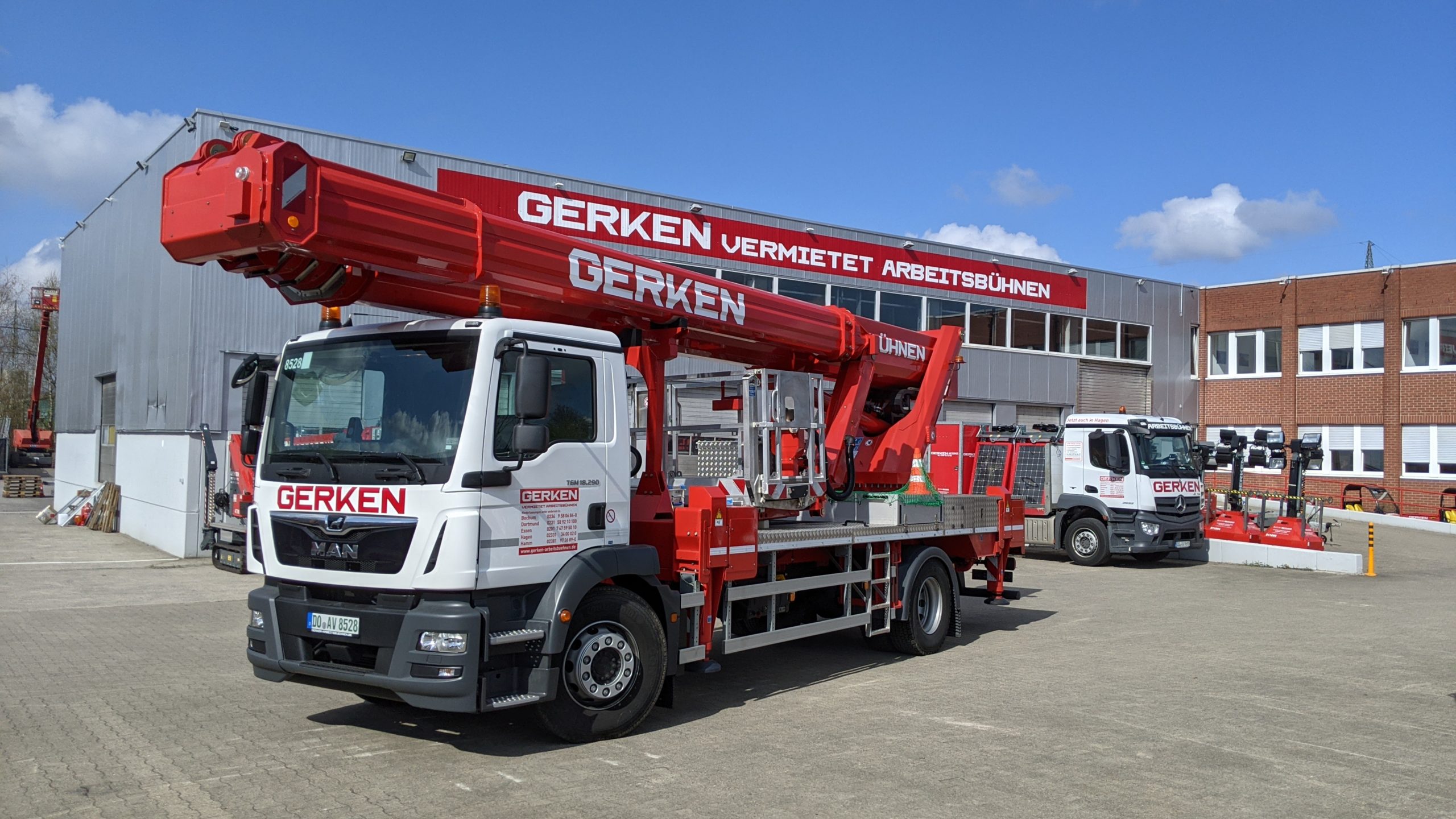

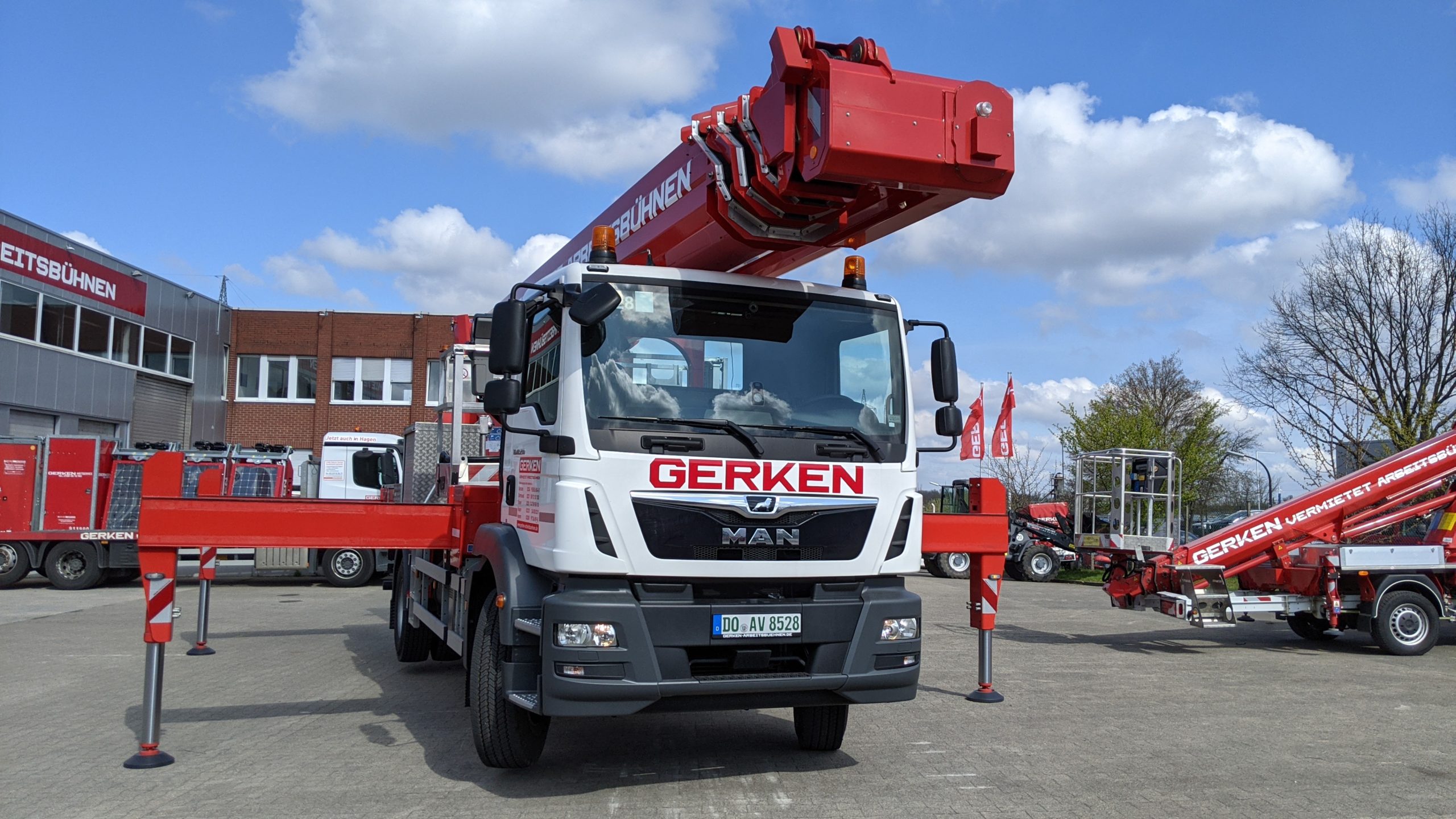

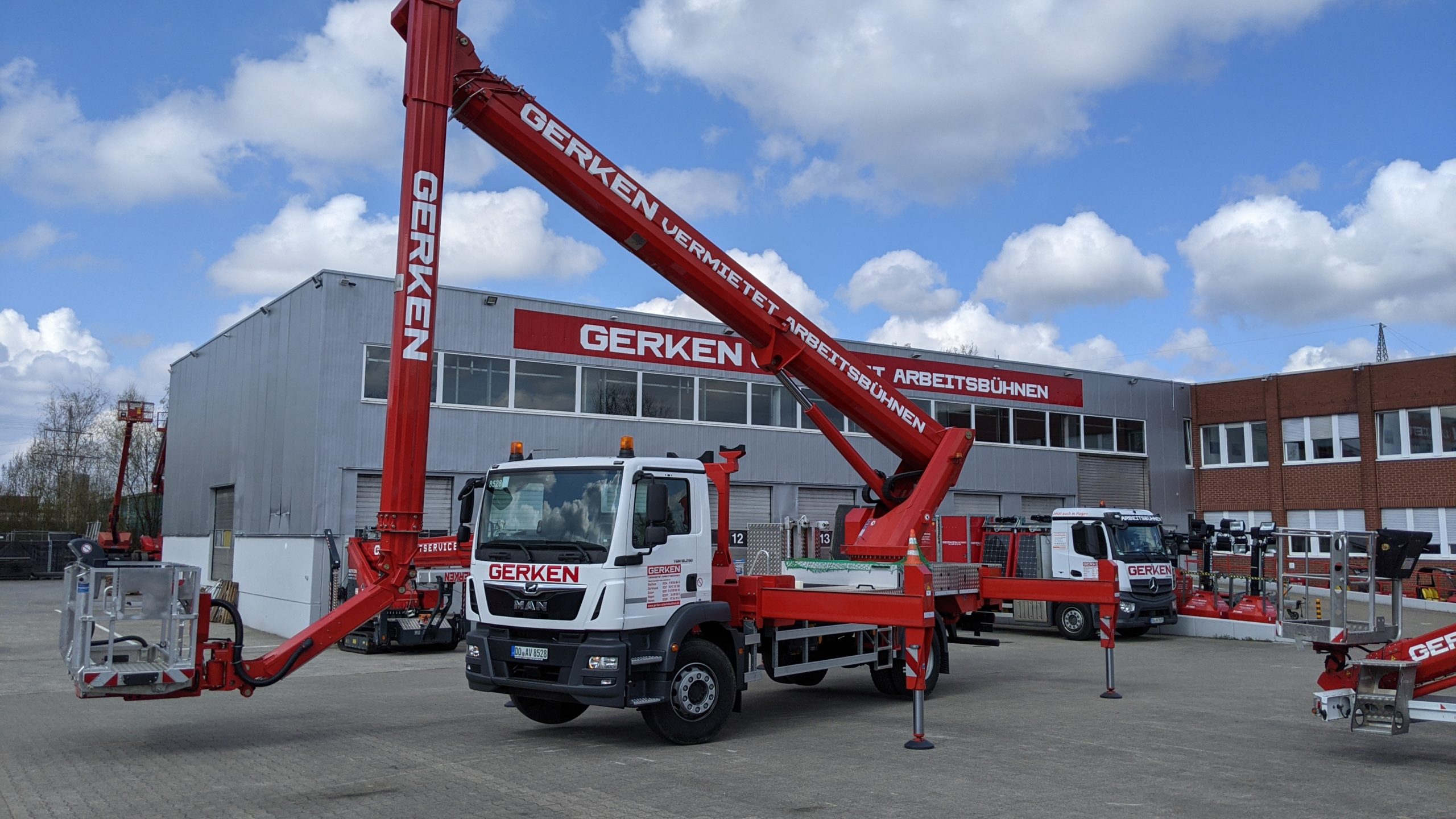

Truck-mounted working platform 48m
GL 48 J GL 48 J

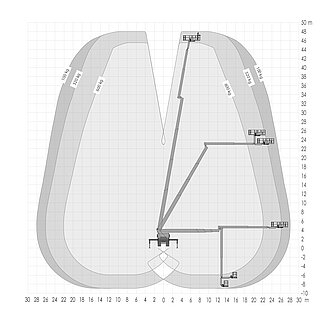

48,00 m Max. Working height
600 kg Max. Basket load / Lifting load
Diesel Drive type
Price on request
| Max. Working height | 48,00 m |
| Max. Platform height | 46,00 m |

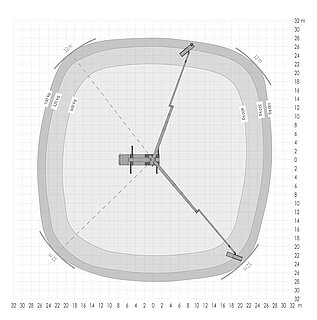

| Max. lateral reach | 32,00 m |
| Max. Basket load / Lifting load | 600 kg |

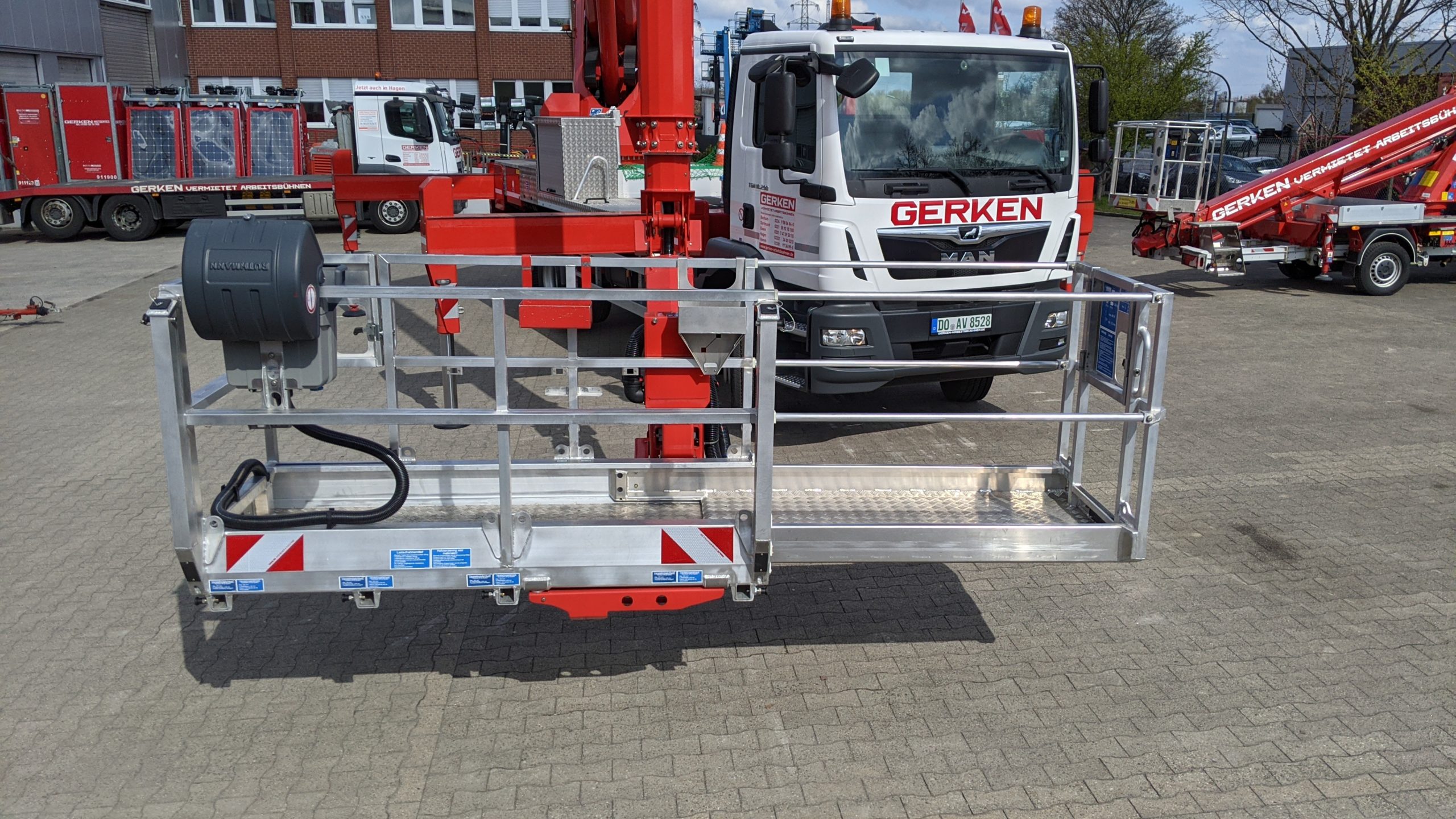

| Platform dimensions LxW | 2,37 x 1,07 m |
| Swivel range | 2 x 250° |
| Rotating work basket | yes |
| Basket arm | yes |
| Overall dimensions LxWxH | 9.76 x 2.54 x 3.95 m |
| Dead weight | 17440 kg |
| Total weight | 18000 kg |
| Perm. total weight | 18000 kg |
| Drive type | Diesel |
| Four-wheel drive | no |
| Ground clearance | 0,21 m |
| Supports | yes |
| Support width on both sides | 6,55 m |
| Support width on one side | 4,57 m |
| Vertical support width | 2,54 m |
| Support length | 6,28 m |
| Support pressure max. | 150 kN |
| Driving licence | only with personnel |
