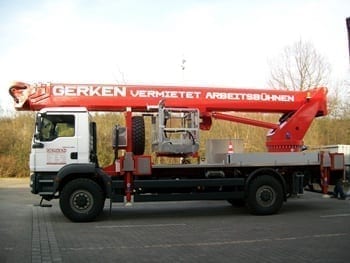

Truck-mounted working platform 45m All-wheel drive
GL 45 H All-wheel drive GL 45 H All-wheel drive
44,80 m Max. Working height
600 kg Max. Basket load / Lifting load
Diesel Drive type
Price on request
| Max. Working height | 44,80 m |
| Max. Platform height | 42,80 m |
| Max. lateral reach | 26,50 m |
| Max. Basket load / Lifting load | 600 kg |
| Platform dimensions LxW | 2,30 x 0,95 m |
| Swivel range | +/-270 ° |
| Rotating work basket | yes |
| Basket arm | yes |
| Overall dimensions LxWxH | 10.00 x 2.55 x 4.01 m |
| Dead weight | 17705 kg |
| Total weight | 18000 kg |
| Perm. total weight | 18000 kg |
| Drive type | Diesel |
| Four-wheel drive | yes |
| Ground clearance | 0,38 m |
| Supports | yes |
| Support width on both sides | 6,20 m |
| Support width on one side | 4,38 m |
| Vertical support width | 2,55 m |
| Support length | 5,85 m |
| Support pressure max. | 130 kN |
| Driving licence | only with personnel |
| Special features | Loading area with drop sides, telescoping cage arm, extremely high cage load, lockable box body for material (1.18 x 0.80 x 0.60 m), work cage can be extended to 3.70 m, available with load carrier system (Powerlift system ) and glass-V |
