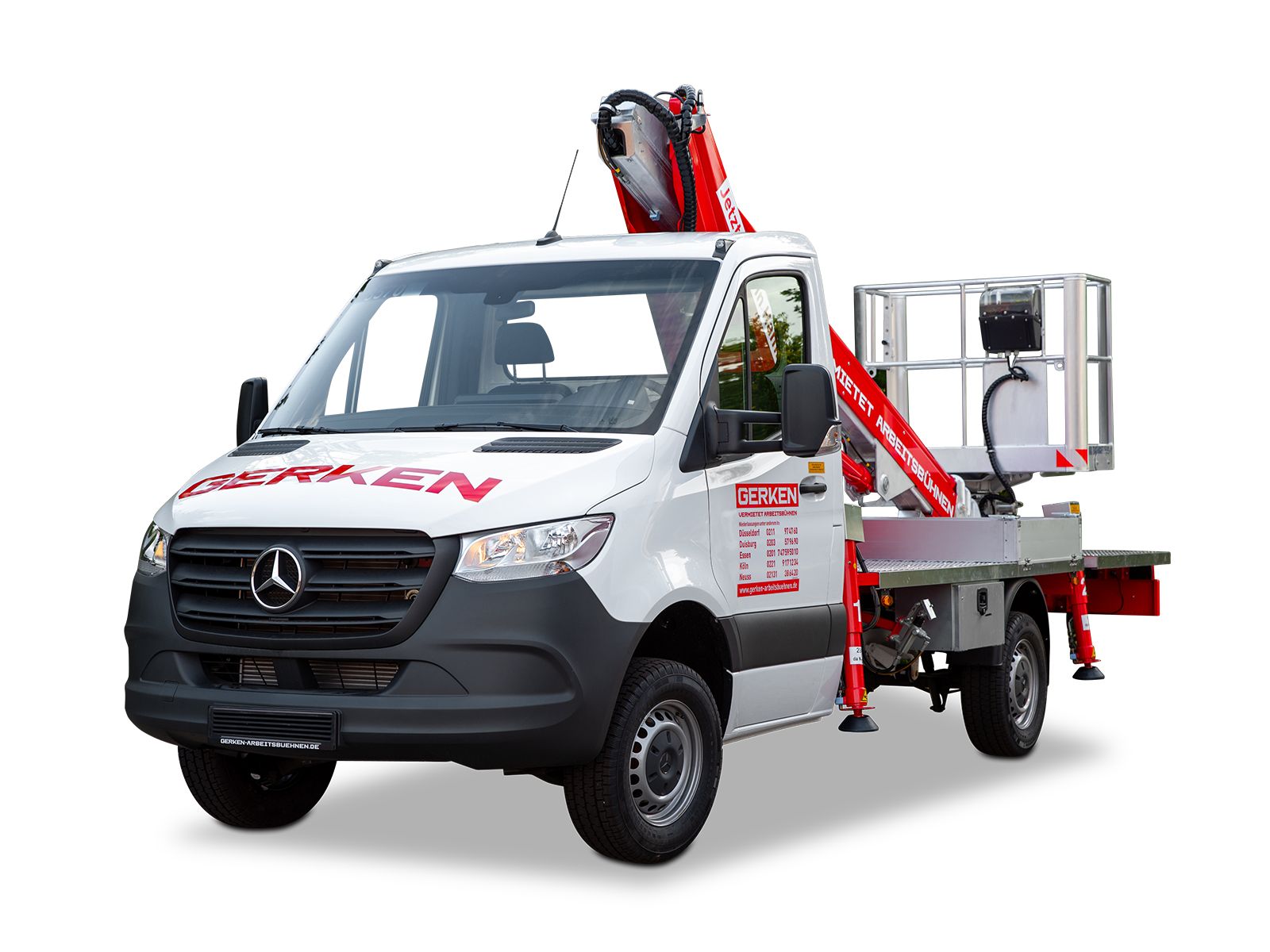

Truck-mounted working platform 16m
GL 16 N GL 16 N
16,29 m Max. Working height
250 kg Max. Basket load / Lifting load
Diesel Drive type
Price on request
| Max. Working height | 16,29 m |
| Max. lateral reach | 10,40 m |
| Max. Basket load / Lifting load | 250 kg |
| Platform dimensions LxW | 1,40 x 1,11 m |
| Max. Platform height | 14,29 m |
| Overall dimensions LxWxH | 7.12 x 2.25 x 2.95 m |
| Support length | 3,20 m |
| Support width on both sides | 2,29/2,34 m |
| Support width on one side | - m |
| Vertical support width | - m |
| Dead weight | 3290 kg |
| Perm. total weight | 3500 kg |
| Drive type | Diesel |
| Four-wheel drive | no |
| Ground clearance | 0,16 m |
| Rotating work basket | yes +/-90°. |
| Swivel range | +/-200° |
| Basket arm | no |
| Driving licence | B / 3 |
| Special features | Loading area 0.93 x 1.56 m with drop sides, box body for tools |
