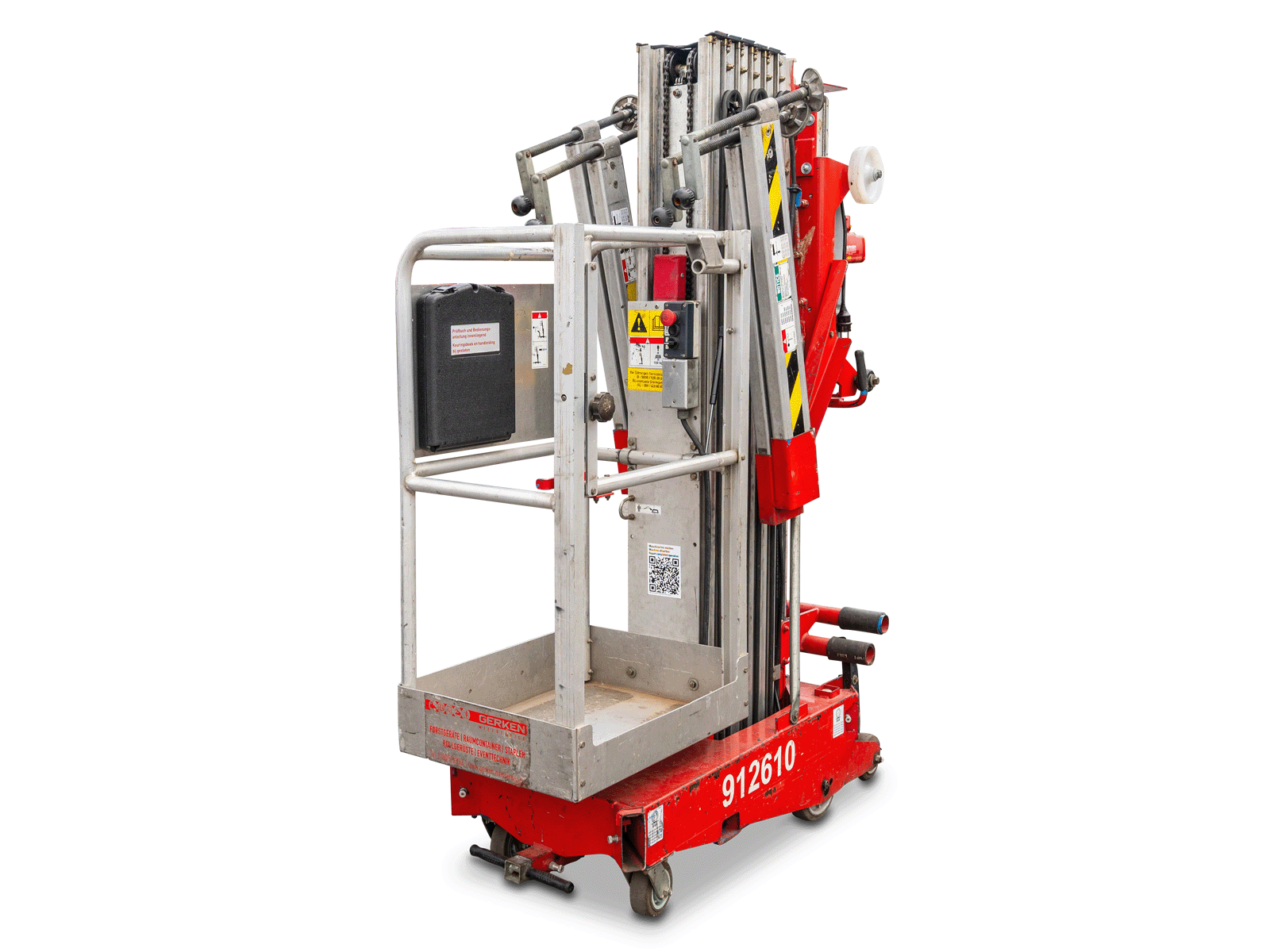

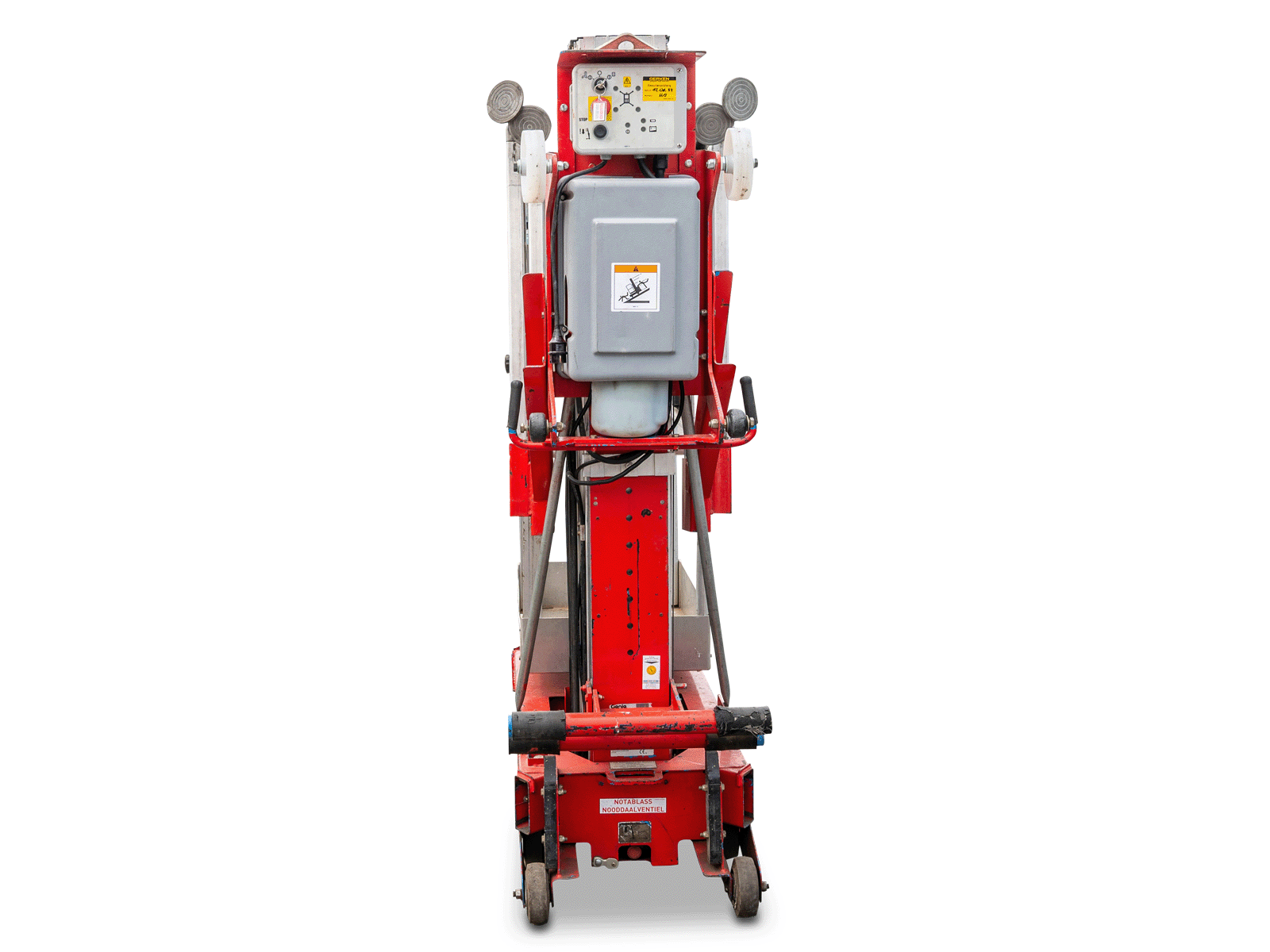

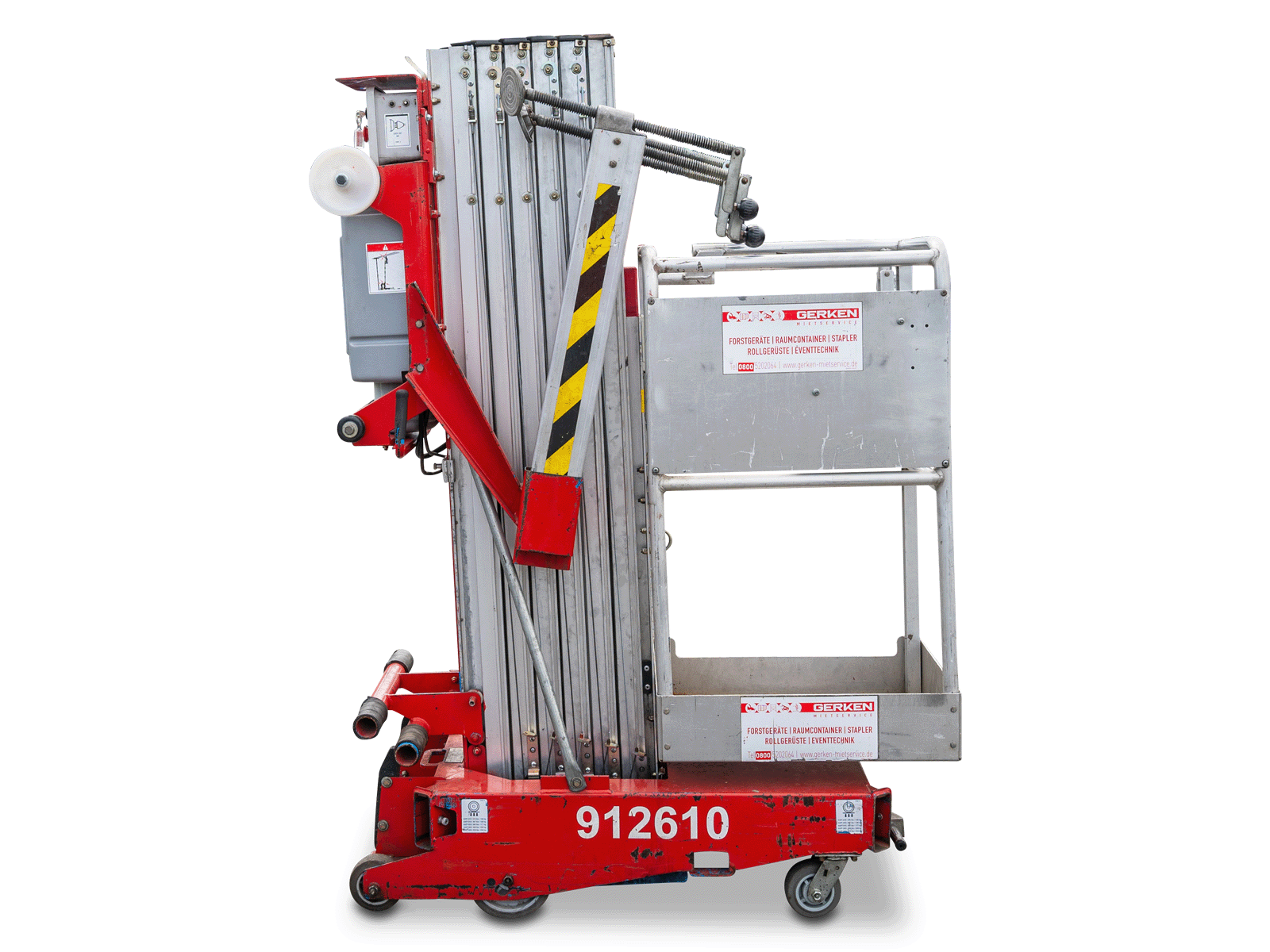

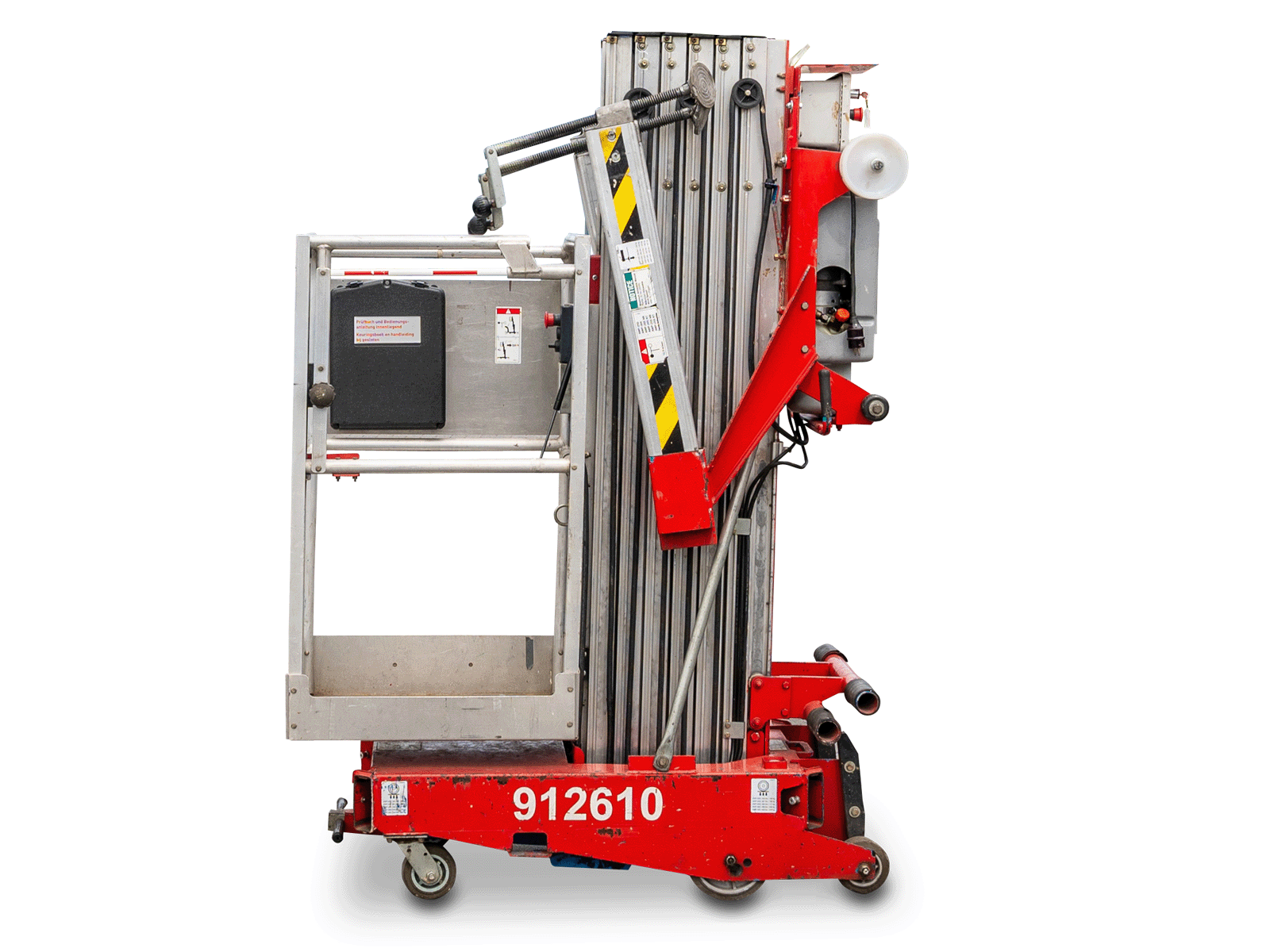

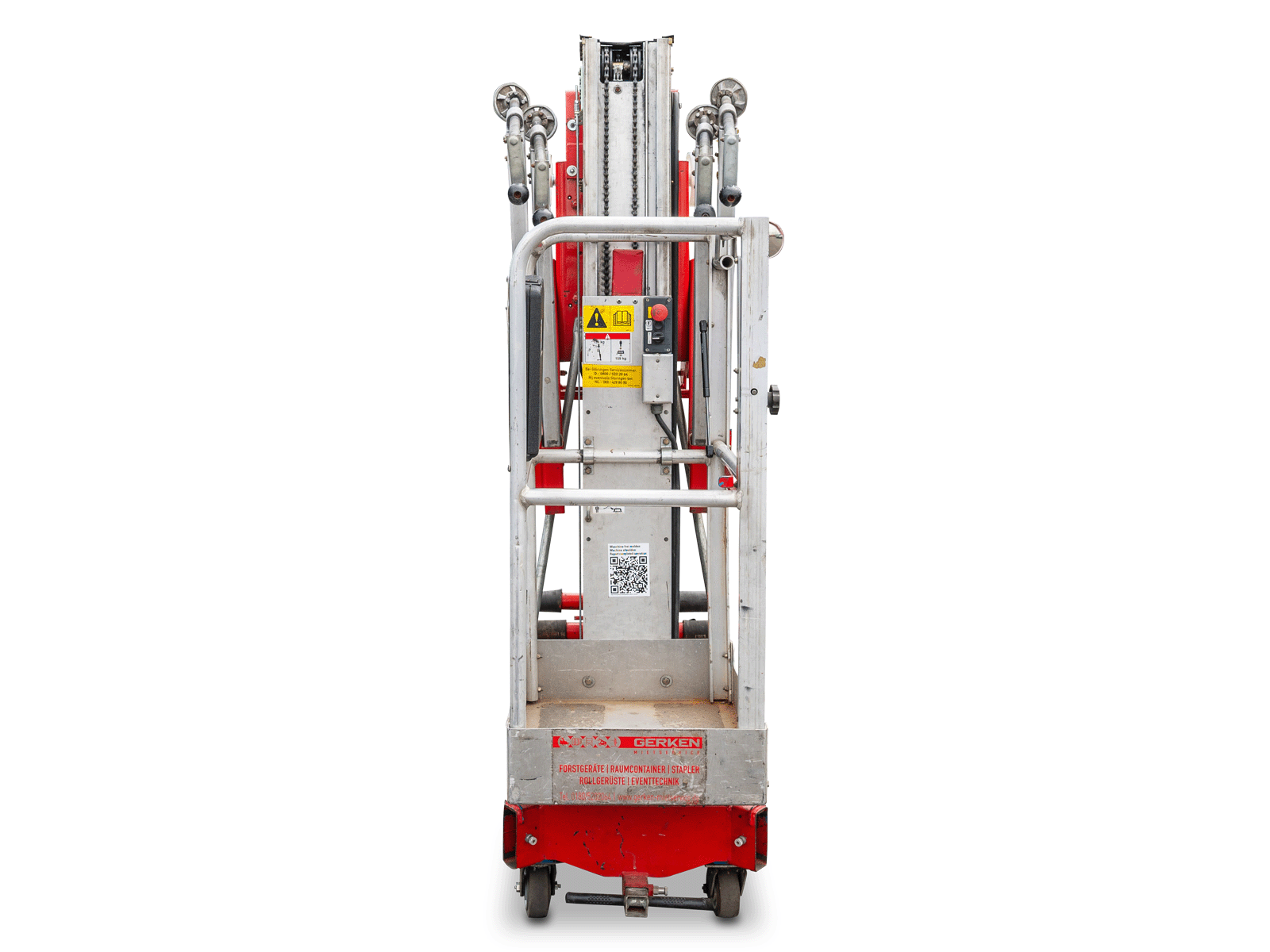

GH 111 S
GH 111 S
Support dimension LxW2.11 x 1.88 m
Drive type230 V
Extendable work basket–
Daily price149,94 €Graduated prices / incl. VAT.
Freitagsrabatt 40%
Secure online payment:
Certified by Trusted Shops!
Data sheet
Support dimension LxW | 2.11 x 1.88 m |
---|---|
Drive type | 230 V |
Extendable work basket | – |
Construction width | 0,56 m |
Ground clearance | 0,05 m |
Corner access | 0,70 m |
Dead weight | 349 kg |
Transport position height | 1,98 m |
Overall dimensions LxWxH | 1.40 x 0.56 x 1.98 m |
Transport position length | 1,40 m |
Max. Working height | 11,10 m |
Max. Basket load / Lifting load | 159 kg |
Indoor use only | no |
Rotatable basket | no |
Platform dimensions WxD | 0.50 x 0.66 m |
Max. Platform height | 9,10 m |
Support pressure max. | 4 kN |

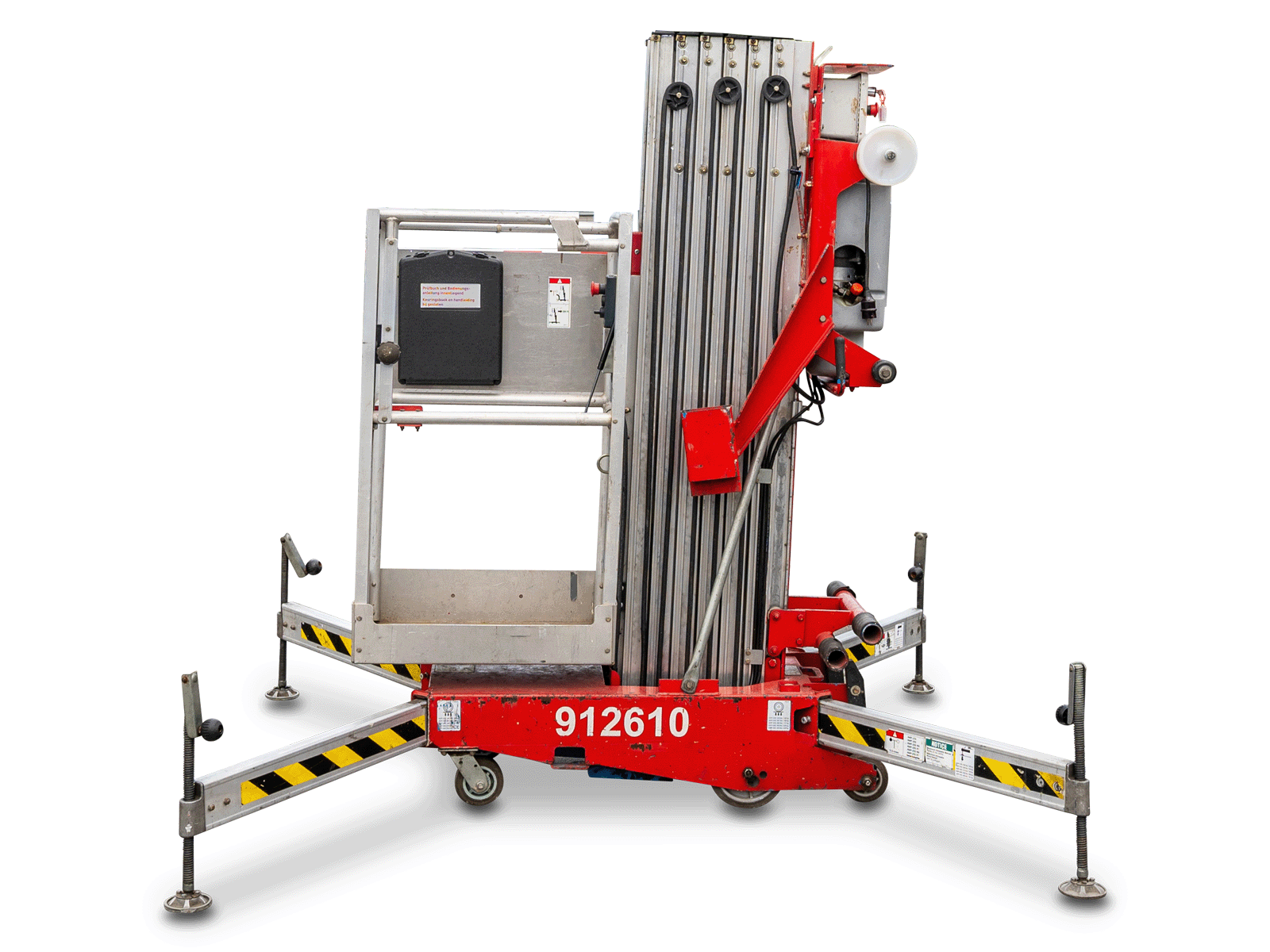

Supports | ja |
Wall clearance front side | 0,23 / 0,51 m |
Special features | Particularly narrow work basket |
Shunting drive | no |
