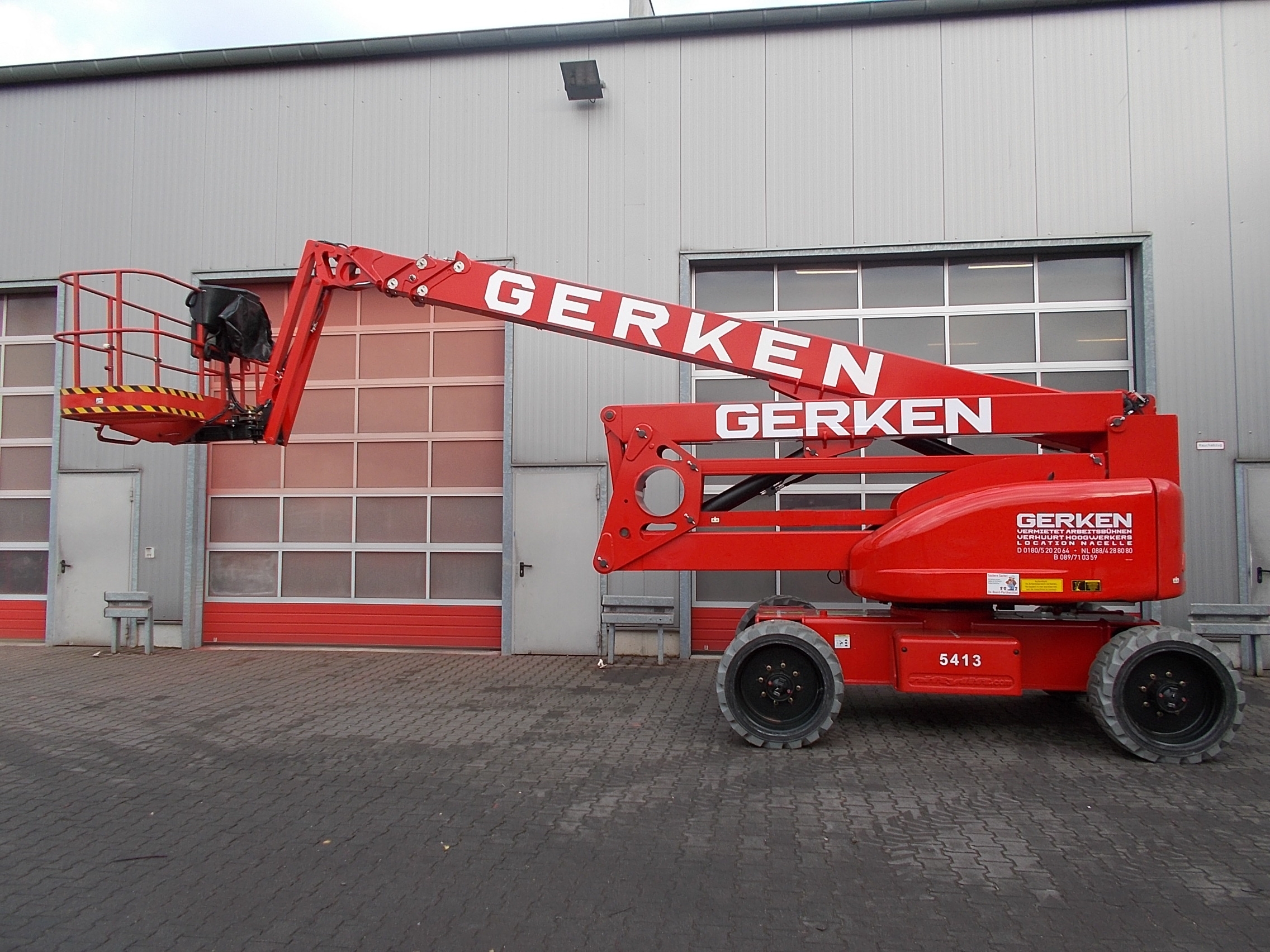

GG 280-25 AWkPHR
Max. Working height27,97 m
Max. Basket load / Lifting load280 kg
Drive typeHybrid
Price on request
Secure online payment:
PayPal
Invoice
Certified by Trusted Shops!
Alternatives
Accessories

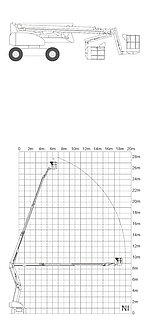

Data sheet
|
Max. Working height
|
27,97 m |
|---|---|
|
Movable up to working height
|
27,97 m |
|
Max. Pitch angle
|
45% |
|
Four-wheel drive
|
ja |
|
Drive type
|
Hybrid |
|
Non-Marking
|
ja |
|
Overall dimensions LxWxH
|
9.26 x 2.49 x 2.63 m |
|
Transport position length
|
7,30 m |
|
Construction width
|
2,49 m |
|
Transport position height
|
2,63 m |
|
Ground clearance
|
0,21 m |
|
Surplus
|
0,50 m |
|
Dead weight
|
14660 kg |
|
Track widening
|
no |
|
Platform dimensions WxD
|
2.40 x 0.91 m |
|
Max. Platform height
|
25,97 m |
|
Max. Basket load / Lifting load
|
280 kg |
|
Swing axle
|
ja |
|
Soot particle filter
|
ja |
|
Basket arm
|
ja |
|
Swivel range
|
360° |
|
Rotating work basket
|
ja/180° ja/180° ja/180° ja/180° ja/180° ja/180° ja/180 |
|
Max. lateral reach
|
19,36 m |
|
Special features
|
Hybrid drive, machine can be used on slopes of up to 5°. |
