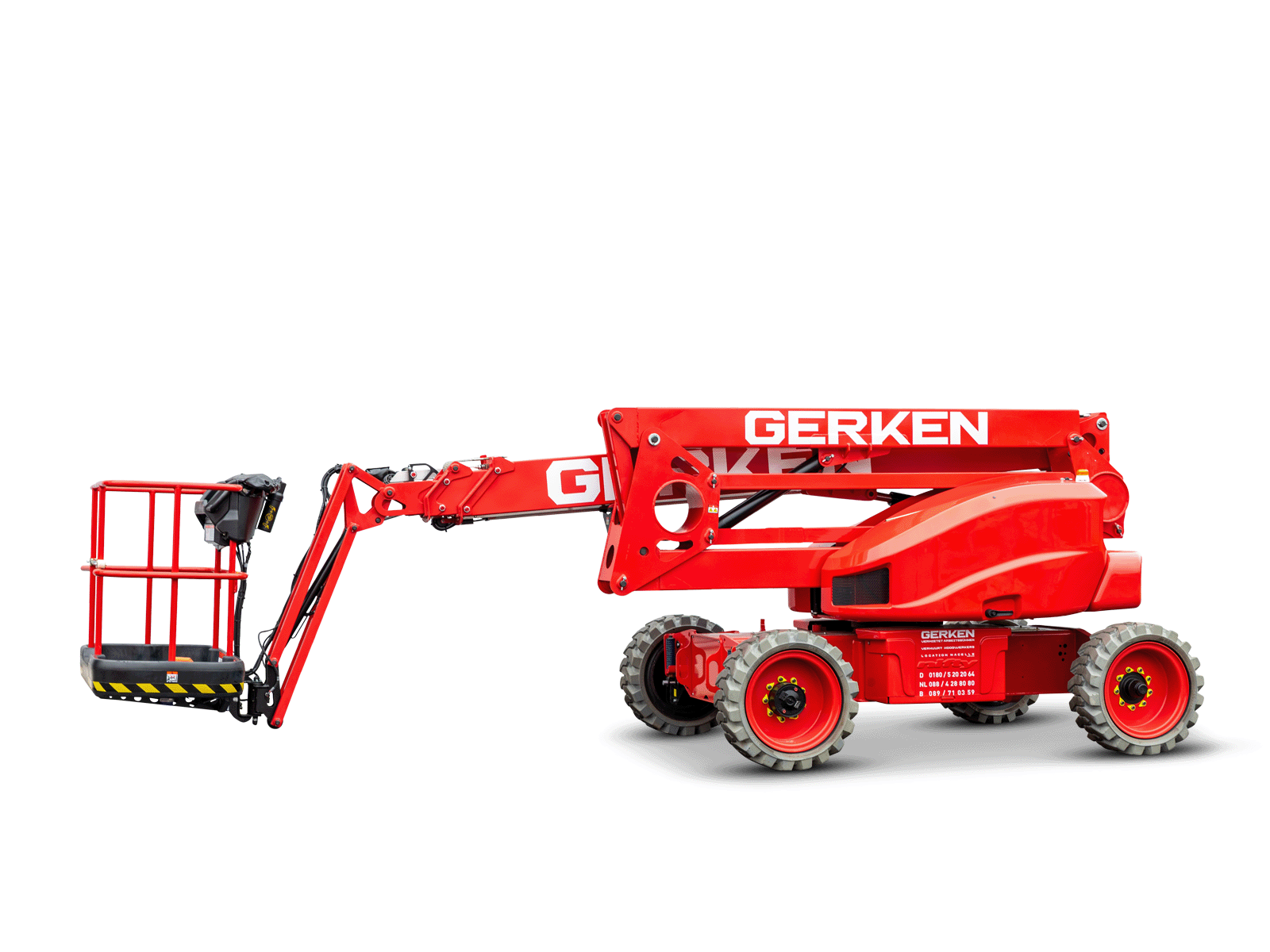

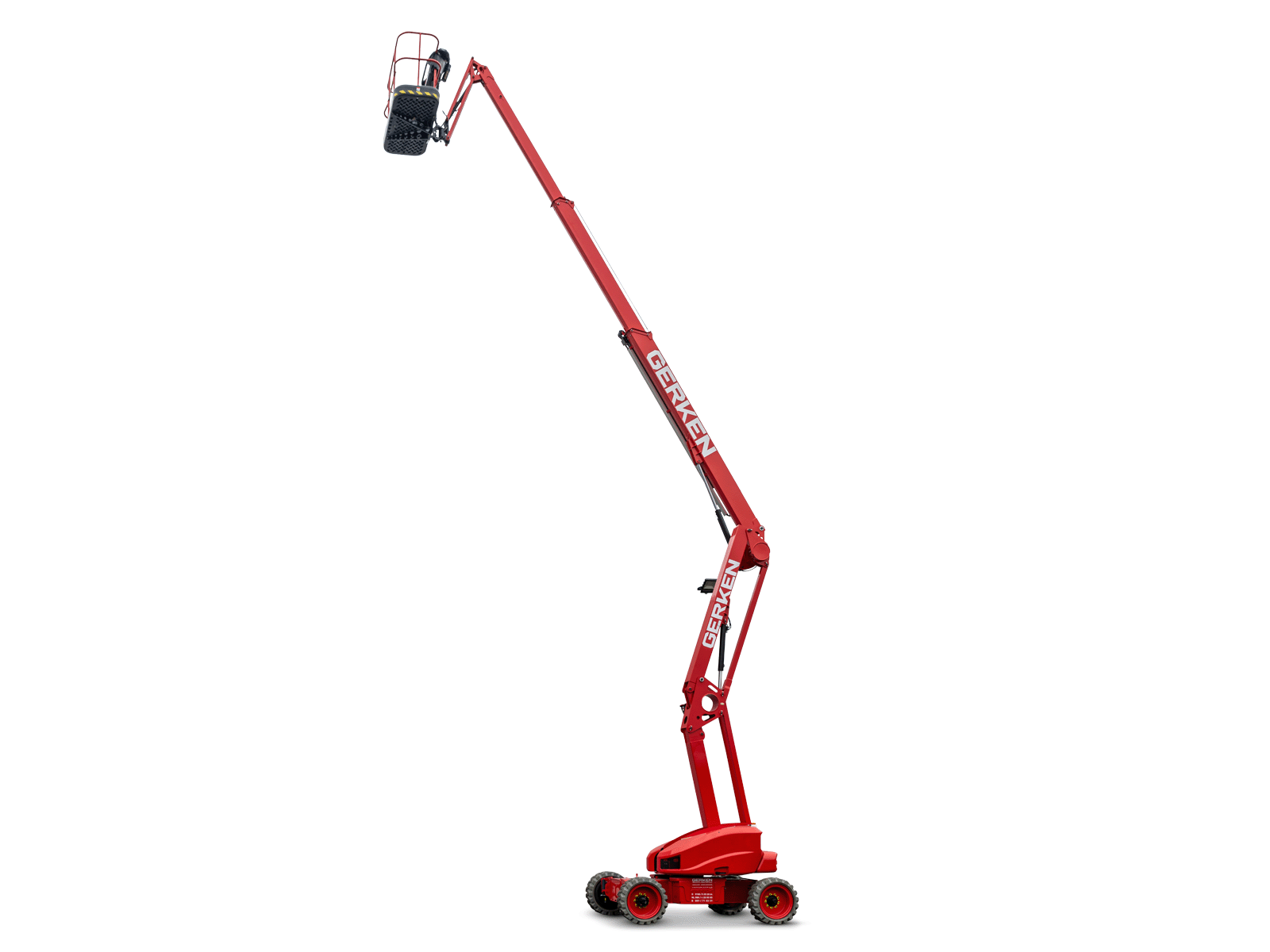

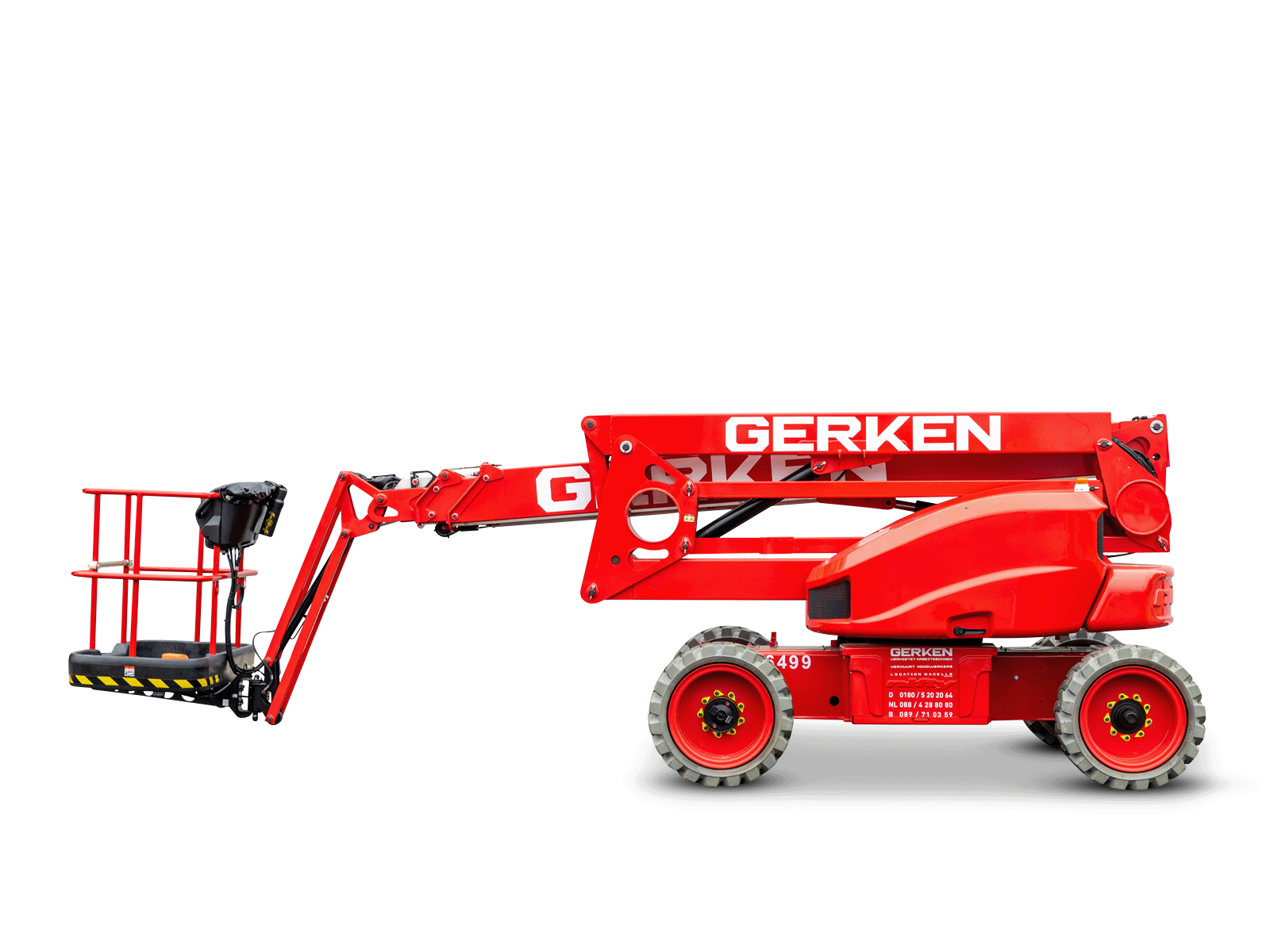

Articulated telescopic work platform 21m
GG 210-23 WkP GG 210-23 WkP
20,81 m Max. Working height
250 kg Max. Basket load / Lifting load
Battery Drive type
Price on request
| Max. Working height | 20,81 m |
| Movable up to working height | 20,76 m |
| Max. Pitch angle | 25% ° |
| Four-wheel drive | no |
| Drive type | Battery |
| Non-Marking | yes |
| Construction width | 2,30 m |
| Overall dimensions LxWxH | 6.63 x 2.30 x 2.18 m |
| Ground clearance | 0,31 m |
| Transport position length | 5,20 m |
| Transport position height | 2,18 m |
| Surplus | 0,43 m |
| Dead weight | 6640 kg |
| Platform dimensions WxD | 1.79 x 0.85 m m |
| Max. Platform height | 18,81 m |
| Max. Basket load / Lifting load | 250 kg |
| Swing axle | yes |
| Basket arm | yes |
| Swivel range | 355° |
| Rotating work basket | yes/2x90° |
| Max. lateral reach | 13,11 m |
| Special features | Abrasion-free off-road tires, active protection system against clamping accidents, PPE attachment points |
