GG 208-24 WAkLPG
GG 208-24 WAkLPG
Four-wheel driveja
Drive typeDiesel
Construction width2,43 m
Daily price537,88 €Graduated prices / incl. VAT.
Freitagsrabatt 40%
Vorteile
- Allradantrieb
- 3 Lenkarten

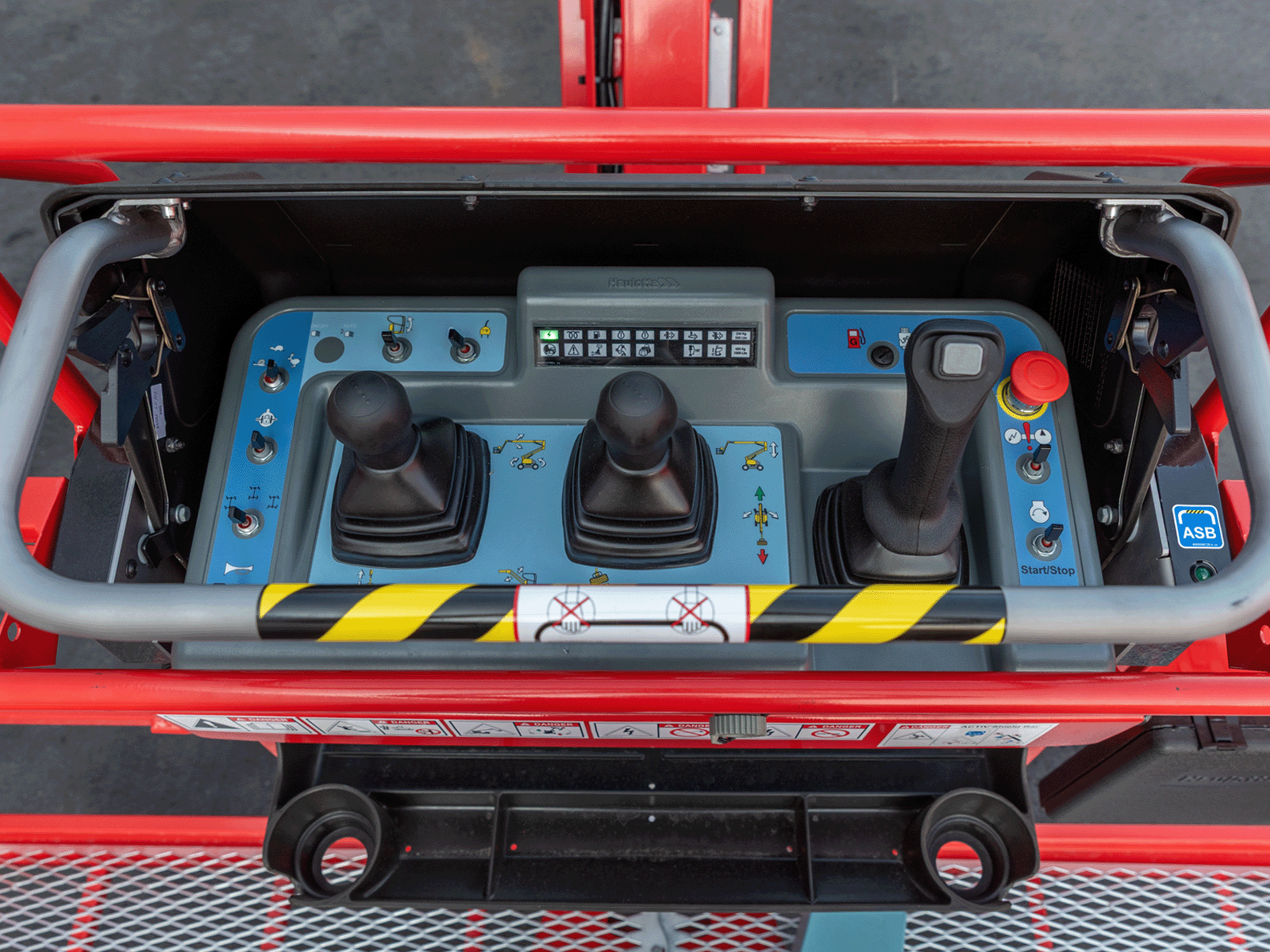

- proportionale Plattformsteuerung
- 360° endlos schwenkbar

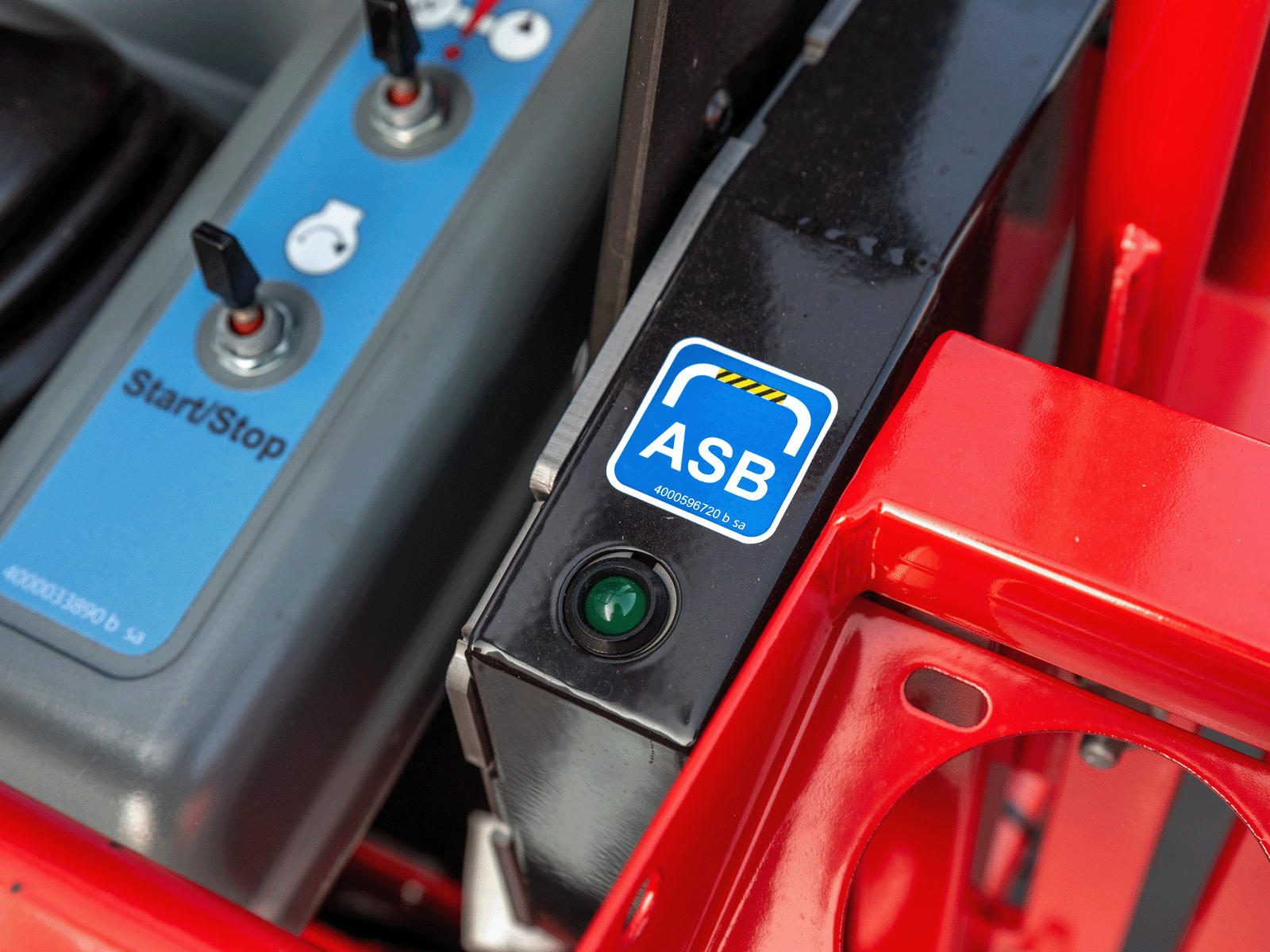

- Einklemm-Schutzsystem im Korb
Besonders geeignet für
- Industrie
- Handwerk
- Baugewerbe
- Messehallen
Secure online payment:
Certified by Trusted Shops!
Alternatives
Data sheet
Four-wheel drive | ja |
---|---|
Drive type | Diesel |
Construction width | 2,43 m |
Ground clearance | 0,29 m |
Differential lock | ja |
Rotating work basket | ja/180° ja/180° ja/180° ja/180° ja/180° ja/180° ja/180 |
Dead weight | 9600 kg |
Overall dimensions LxWxH | 8.85 x 2.43 x 2.52 m |
Transport position height | 2,98 m |
Basket arm | ja |
Basket arm, rotation angle | me / -80°/+60° |
Transport position length | 6,40 m |
Max. Working height | 20,79 m |
Max. Basket load / Lifting load | 230 kg |
Max. Pitch angle | 45% |
Max. lateral reach | 12,72 m |
Indoor use only | no |
Swing axle | ja |
Platform dimensions WxD | 2.41 x 0.90 m |
Max. Platform height | 18,79 m |
Wheel pressure (support pressure) max. | 12.9 kN |
Swivel range | 360° |
Track widening | – |
Supports | no |
Movable up to working height | 20,79 m |
Non-Marking | ja |
Special features | Abrasion-free off-road tires, all-wheel drive and steering, very good off-road capability with oscillating axle and differential lock, high ground clearance, generator in basket, upper structure can be rotated endlessly, large work basket, active anti-trap system |
Surplus | 0,16 m |
4-wheel steering | ja |
Built-in generator / 230V | yes - socket in basket |
