GG 206-24 WQ(P)
Max. Working height20,51 m
Max. Basket load / Lifting load230 kg
Drive typeBatterie
Price on request
Secure online payment:
PayPal
Invoice
Certified by Trusted Shops!
Data sheet
| Max. Working height | 20,51 m |
|---|---|
| Movable up to working height | 20,50 m |
| Max. Pitch angle | 30 % |
| Four-wheel drive | no |
| Drive type | Batterie |
| Non-Marking | ja |
| Construction width | 2,41 m |
| Overall dimensions LxWxH | 10.10 x 2.41 x 2.54 m |
| Ground clearance | 0,29 m |
| Transport position height | 3,15 m |
| Transport position length | 8,15 m |
| Surplus | 1,25 m |
| Dead weight | 6934 kg |
| Track widening | – |
| Platform dimensions WxD | 1.83 x 0.76* m |
| Max. Basket load / Lifting load | 230 kg |
| Swing axle | (yes) partially |
| Basket arm | ja |
| Swivel range | +/- 175° |
| Rotating work basket | ja |

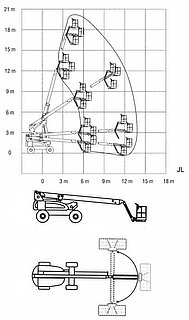

| Max. lateral reach | 13,70 m |
| Special features | Basket arm can be swiveled vertically and horizontally, very long work cycles possible, universally applicable. *Compact work basket available |
