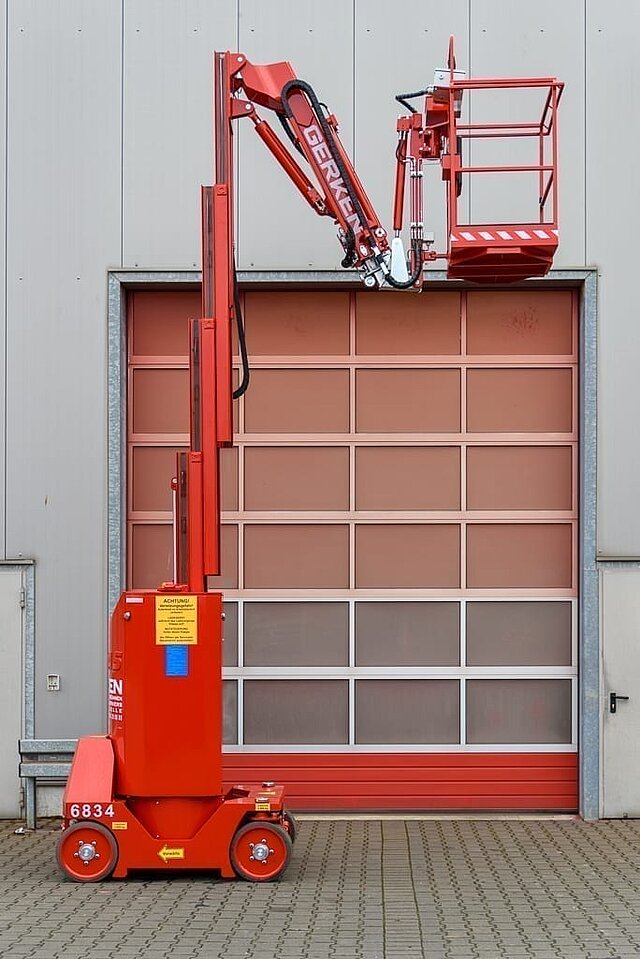

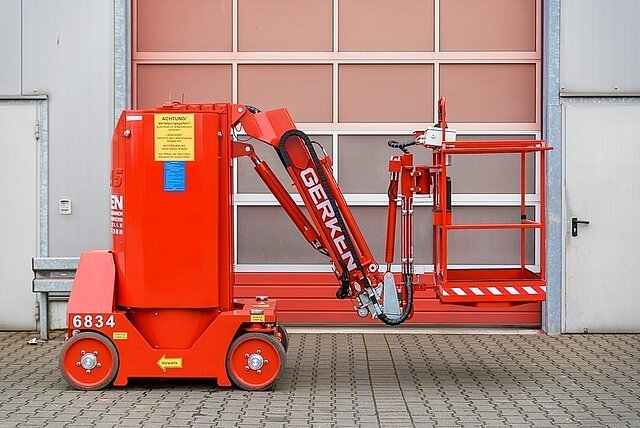

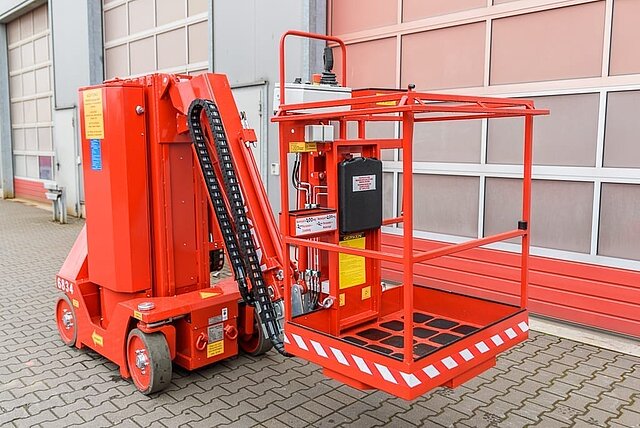

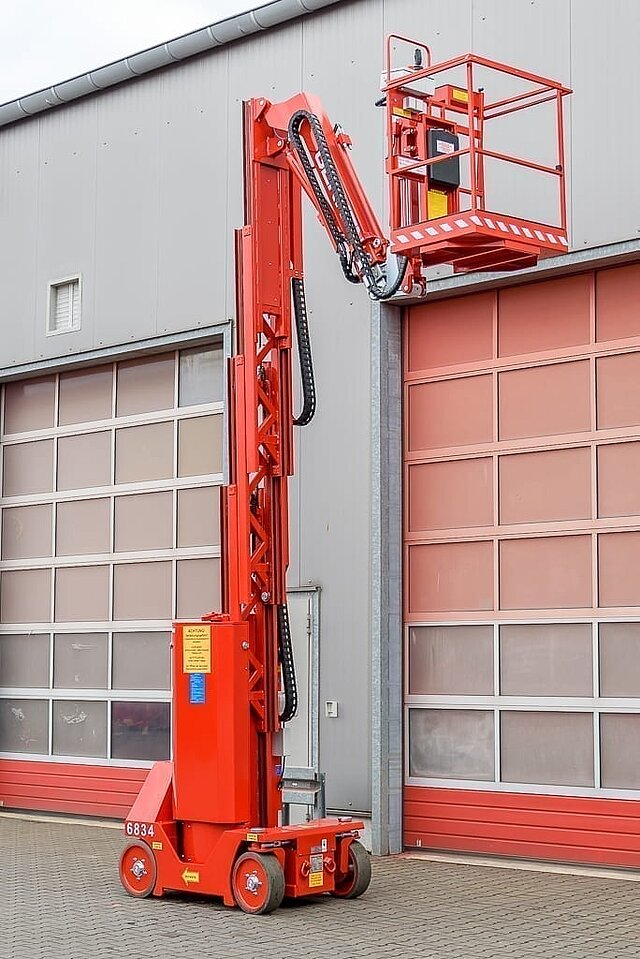

GTM 120-10 W
| Max. Working height | 12,01 m |
|---|---|
| Max. lateral reach | 5,57 m |
| Max. Basket load / Lifting load | 200 kg |
| Movable up to working height | 12,01 m |
| Max. Pitch angle | 16 % |
| Drive type | Batterie |
| Non-Marking | ja |
| Indoor use only | no |
| Overall dimensions LxWxH | 3.38 x 0.98 x 1.99 m |
| Transport position length | 3,21 m |
| Construction width | 0,98 m |
| Transport position height | 1,99 m |
| Ground clearance | 0,08 m |
| Dead weight | 4800 kg |
| Rotating work basket | I/+90° / -90° |
| Swivel range | 355° |
| Special features | Compact device / Telescopic cage arm / Only approved for outdoor use by 1 person. |
