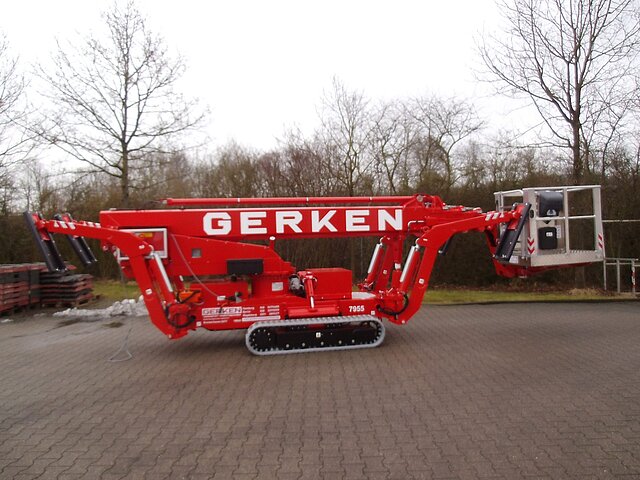

GSA 25 J
| Max. Working height | 25,20 m |
|---|---|
| Max. Basket load / Lifting load | 200 kg |
| Drive type | Hybrid |
| Max. lateral reach | 18,00 m |
| Overall dimensions LxWxH | 7.00 x 1.58 x 2.16 m |
| Transport position length | 7,00 m |
| Construction width | 1,58 m |
| Transport position height | 2,16 m |
| Platform dimensions WxD | 1.25 x 0.80 m |
| Swing axle | no |
| Basket arm, rotation angle | no |
| Dead weight | 3880 kg |
| Ground clearance | 0,26 m |
| Four-wheel drive | no |
| Supports | ja |
| Support pressure max. | 25 kN |
| Support on both sides LxW | 5.50 x 5.80 m |
| Support one-sided BxL | 4.35 x 6.64 m |
| Support narrow WxL | 2.99 x 6.64 m |
| Swivel range | 180° |
| Tractieaandrijving | yes, white rubber chain |
| Rotatable basket | ja |
| Indoor use only | no |
| Non-Marking | ja |
| Special features | Basket quick-change system, Enormous range, Choice of electric/diesel drive, Compact machine dimensions, Height and width-adjustable chassis |
