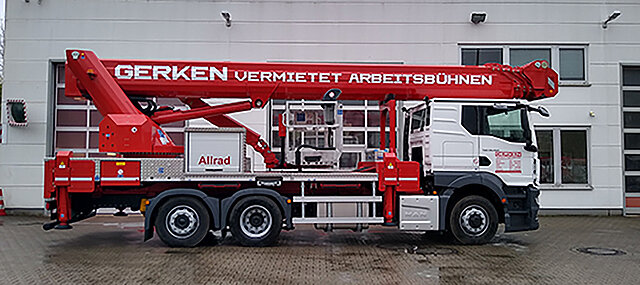

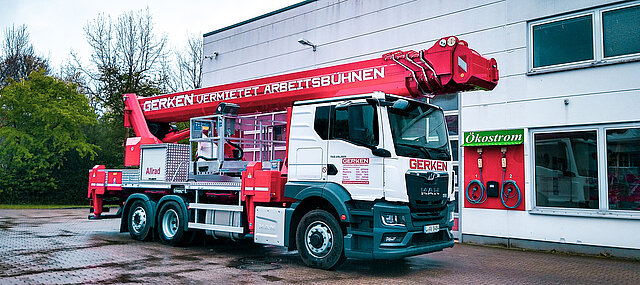

GL 51 J Four-wheel drive
| Max. Working height | 50,61 m |
|---|---|
| Max. lateral reach | 32,93 m |
| Max. Basket load / Lifting load | 600 kg |
| Platform dimensions LxW | 2,37 x 1,09 m |
| Overall dimensions LxWxH | 10.36 x 2.94 / 2.62* x 3.84 m |
| Support length | 6,29 m |
| Support width on both sides | 6,52 m |
| Support width on one side | 4,53 |
| Vertical support width | 2,55 |
| Dead weight | 24050 kg |
| Perm. total weight | 26000 kg |
| Drive type | Diesel |
| Four-wheel drive | ja |
| Ground clearance | 0,20 m |
| Rotating work basket | yes/2 x 220° / 440° |
| Swivel range | 2 x 250° / 500° |
| Basket arm | ja |
| Driving licence | only with personnel |
| Special features | All-wheel drive. 3-axle - so that the larger working diagram can be used. Lift Up System - the 3rd axle is liftable and can therefore be raised for off-road use. |
