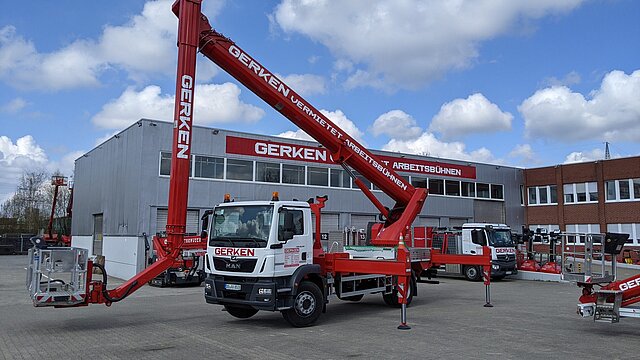

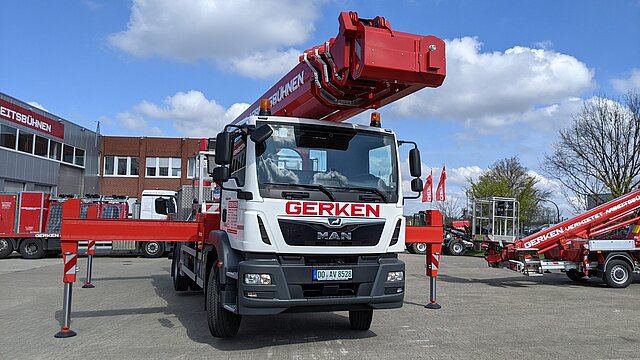

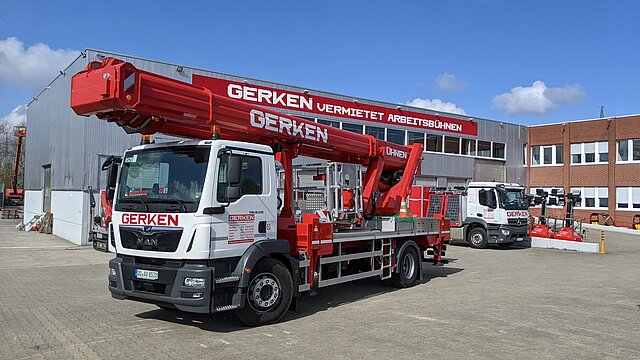

GL 48 J
| Max. Working height | 48,00 m |
|---|---|
| Max. lateral reach | 32,00 m |
| Max. Basket load / Lifting load | 600 kg |

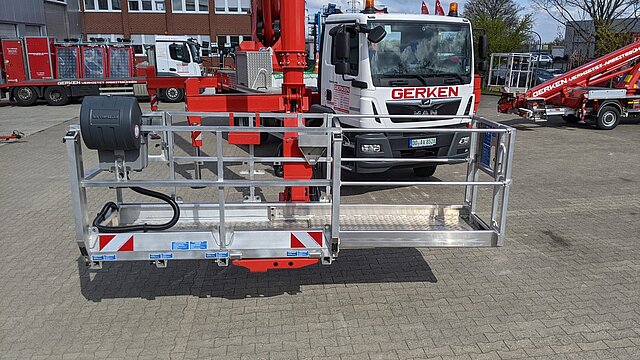

| Platform dimensions LxW | 2,37 x 1,07 m |
| Overall dimensions LxWxH | 9.76 x 2.54 x 3.95 m |
| Support length | 6,28 m |
| Support width on both sides | 6,55 m |
| Support width on one side | 4,57 |
| Vertical support width | 2,54 |
| Dead weight | 17440 kg |
| Perm. total weight | 18000 kg |
| Drive type | Diesel |
| Four-wheel drive | no |
| Ground clearance | 0,21 m |
| Rotating work basket | ja |
| Swivel range | 2 x 250° |
| Basket arm | ja |
| Driving licence | only with personnel |
