GL 27 N

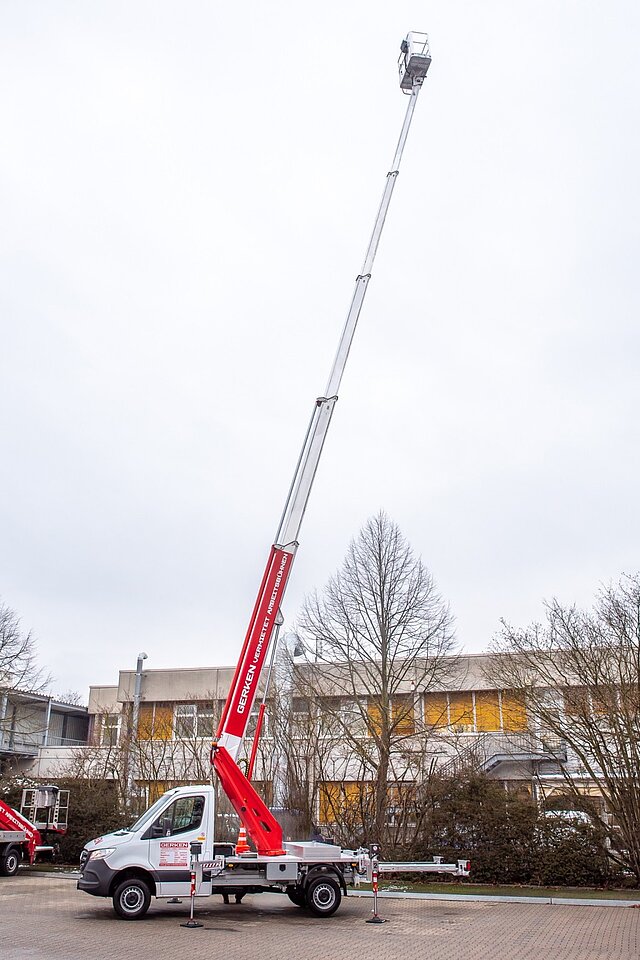

| Max. Working height | 26,95 m |
|---|---|
| Max. lateral reach | 17,10 m |
| Max. Basket load / Lifting load | 230 kg |
| Platform dimensions LxW | 1,40 x 0,70 m |
| Overall dimensions LxWxH | 7.90 x 2.25 x 3.02 m |
| Support length | 3.61 wide/ 3.06 narrow m |
| Support width on both sides | 3.50 (front) / 3.55 (rear) m |
| Support width on one side | 2.90 (front) / 2.89 (rear) |
| Vertical support width | 2,24 |
| Dead weight | 3340 kg |
| Perm. total weight | 3500 kg |
| Drive type | Diesel |
| Four-wheel drive | no |
| Ground clearance | 0,19 m |
| Rotating work basket | ja/2 x 90 |
| Swivel range | 2 x 200° |
| Basket arm | no |
| Driving licence | B / 3 |
