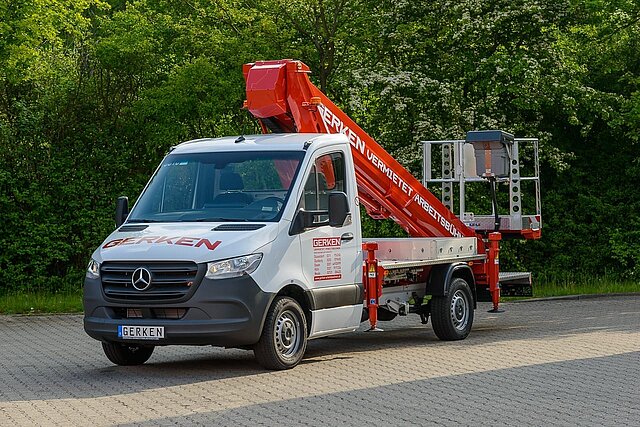

GL 27 L
| Max. Working height | 27,10 m |
|---|---|
| Max. lateral reach | 16,32 m |
| Max. Basket load / Lifting load | 230 kg |
| Platform dimensions LxW | 1,39 x 0,67 m |
| Overall dimensions LxWxH | 7.67 x 2.18 x 2.99 m |
| Support length | 4.16 wide/ 3.14 narrow m |
| Support width on both sides | 3.52 (front) / 3.66 (hinten) m |
| Support width on one side | 2.87 (front) / 2.92 (rear) |
| Vertical support width | 2,20 |
| Dead weight | 3290 kg |
| Perm. total weight | 3500 kg |
| Drive type | Diesel |
| Four-wheel drive | no |
| Ground clearance | 0,15 m |
| Rotating work basket | ja |
| Swivel range | +/- 225° |
| Basket arm | no |
| Driving licence | B / 3 |
| Special features | Navigation system, socket in the workman basket, motor on/off switch in the workman basket, earthing possible, automatic retraction, automatic positioning, memory function, etc. |
