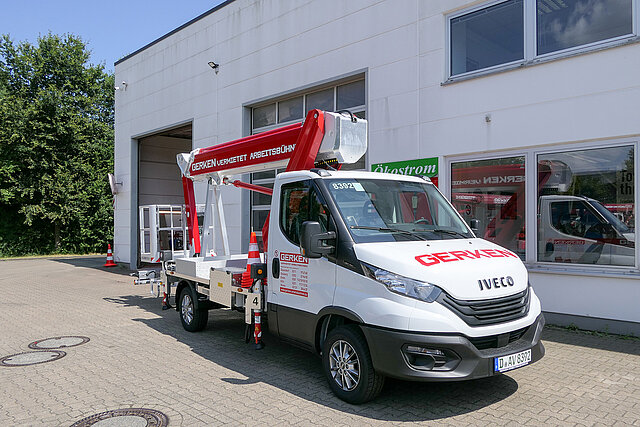

GL 25 Q
| Max. Working height | 24,43 m |
|---|---|
| Max. lateral reach | 15,62 m |
| Max. Basket load / Lifting load | 250 kg |
| Platform dimensions LxW | 1,34 x 0,63 m |
| Overall dimensions LxWxH | 7.90 x 2.43 x 2.97 m |
| Support length | 3,70 m |
| Support width on both sides | 3.58 (front) / 3.56 (rear) m |
| Support width on one side | 2.90 |
| Vertical support width | 2.22 |
| Dead weight | 3350 kg |
| Drive type | Diesel |
| Four-wheel drive | no |
| Ground clearance | 18m m |
| Rotating work basket | yes, 2x 120° |
| Swivel range | 450° |
| Basket arm | ja |
| Driving licence | B / 3 |
| Special features | Insulated 1000 V |
