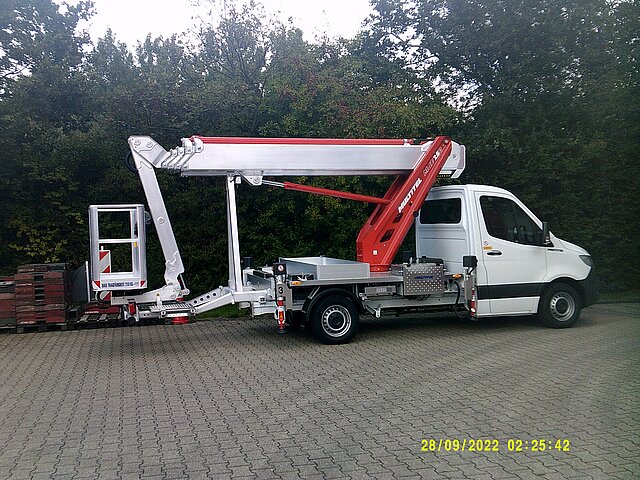

GL 25 P
| Max. Working height | 24,60 m |
|---|---|
| Max. lateral reach | 16,39 m |
| Max. Basket load / Lifting load | 250 kg |
| Overall dimensions LxWxH | 8.00 x 2.25 x 3.02 m |
| Support length | 4,97 m |
| Support width on both sides | 3.48m (front) / 3.55m (rear) m |
| Support width on one side | 2.81m (vorne) / 2.88m (hinten) |
| Vertical support width | 2.22m |
| Dead weight | 3350 kg |
| Perm. total weight | 3500 kg |
| Drive type | Diesel |
| Four-wheel drive | no |
| Ground clearance | 0,18m m |
| Rotating work basket | yes/2 x 120° |
| Swivel range | 450° |
| Basket arm | ja |
| Driving licence | B / 3 |
| Special features | Enormous reach, cage boom technology on 3.5 t chassis, automatic set-up and retraction, memory function |
