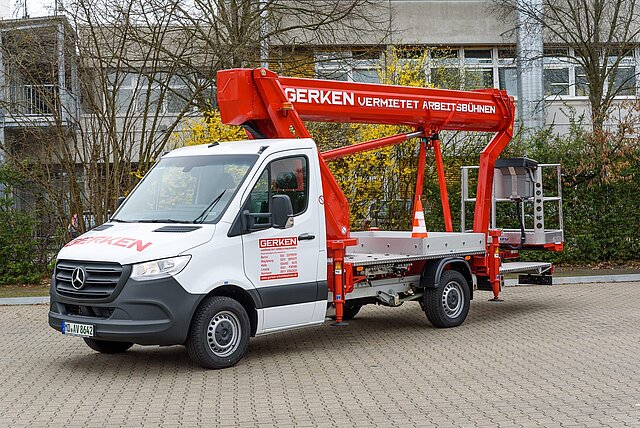

GL 25 K

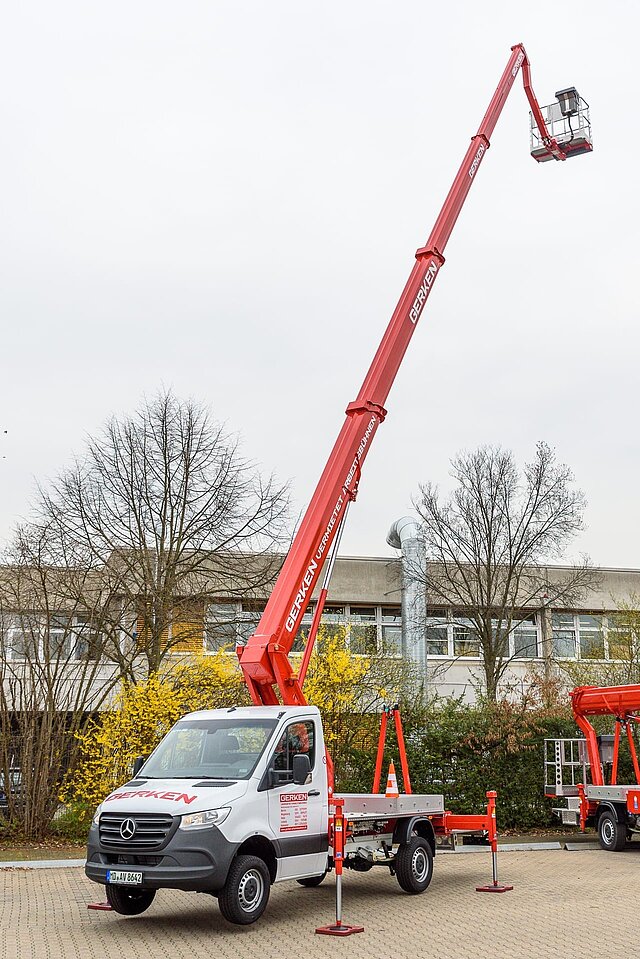

| Max. Working height | 24,50 m |
|---|---|
| Max. lateral reach | 16,58 m |
| Max. Basket load / Lifting load | 230 kg |

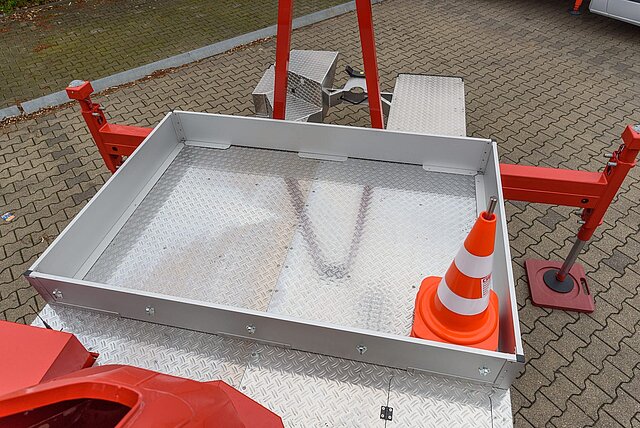

| Platform dimensions LxW | 1,39 x 0,70 m |
| Overall dimensions LxWxH | 7.80 x 2.30 x 3.03 m |

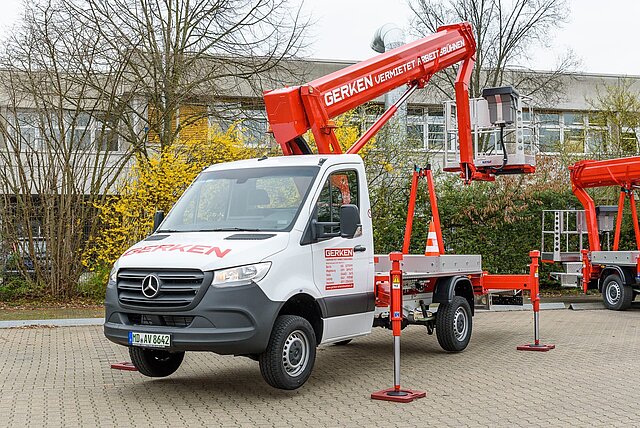

| Support length | 4,15 m |
| Support width on both sides | 3,52 m |
| Support width on one side | 2.89 (front)/2.86 (rear) |
| Vertical support width | 2,20 |
| Dead weight | 3330 kg |
| Perm. total weight | 3500 kg |
| Drive type | Diesel |
| Four-wheel drive | no |
| Ground clearance | 0,20 m |
| Rotating work basket | yes/2 x 85°. |
| Swivel range | 2 x 225° |
| Basket arm | ja |
| Driving licence | B / 3 |
| Special features | Enormous reach, cage boom technology on 3.5 t chassis, automatic set-up and retraction, memory function |
