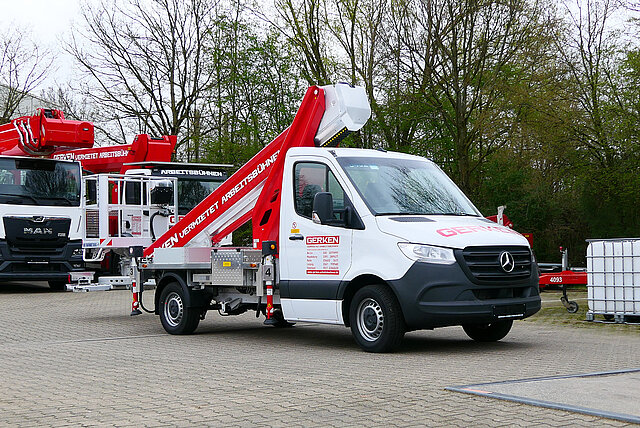

GL 23 R
| Max. Working height | 22,71 m |
|---|---|
| Max. lateral reach | 15,89 m |
| Max. Basket load / Lifting load | 300 kg |
| Platform dimensions LxW | 0,86x1,44 m |
| Overall dimensions LxWxH | 7.78 x 2.26 x 3.01 m |
| Support length | 3,61 m |
| Support width on both sides | V=3.48 / H=3.55 m |
| Support width on one side | V=2.86 / H=2.90 |
| Vertical support width | V = 2,22 / H = 2,23 |
| Dead weight | 3340 kg |
| Drive type | Diesel |
| Four-wheel drive | no |
| Ground clearance | 0,24 m |
| Rotating work basket | ja |
| Swivel range | 2x 200° = 400° |
| Basket arm | no |
| Driving licence | B / 3 |
