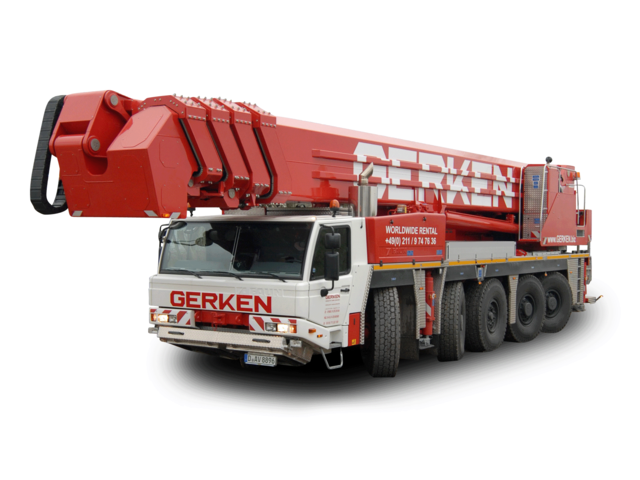

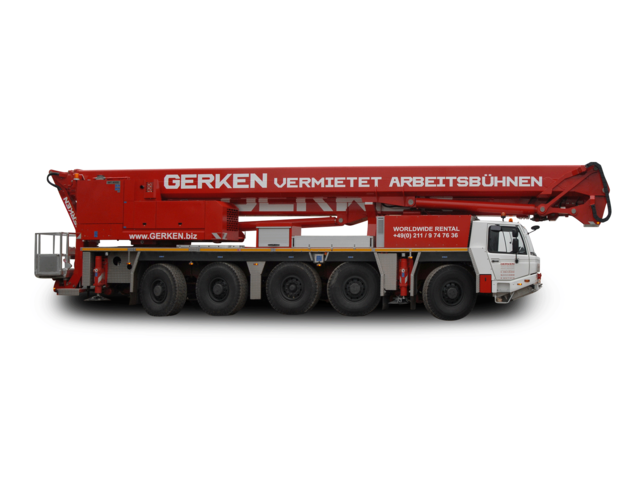

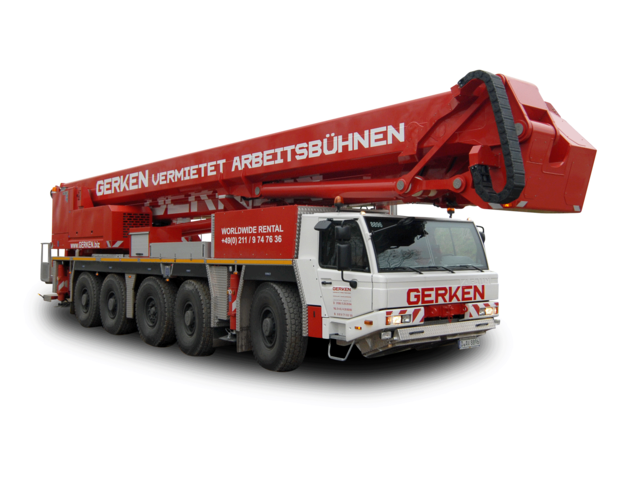

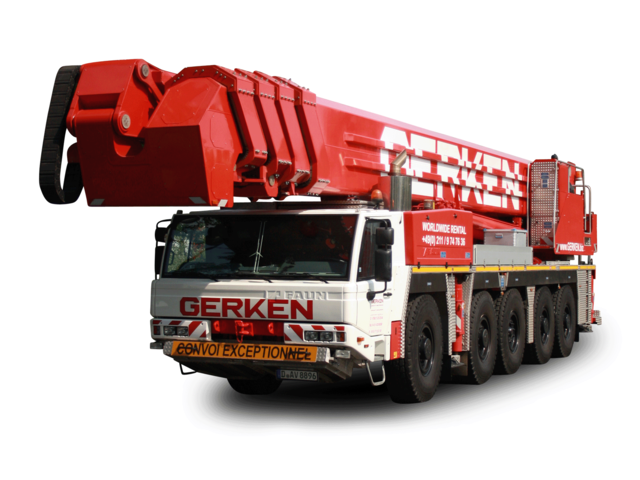

GL 103 G All-wheel drive
| Max. Working height | 102,50 m |
|---|---|
| Max. lateral reach | 35,80 m |
| Max. Basket load / Lifting load | 530 kg |
| Platform dimensions LxW | 3,70 x 0,90 m |
| Overall dimensions LxWxH | 16.50 x 2.75 x 3.96 m |
| Support length | 8,75 m |
| Support width on both sides | 8,05 m |
| Support width on one side | 6,80 |
| Vertical support width | 5,55 |
| Dead weight | 59735 kg |
| Perm. total weight | 60000 kg |
| Drive type | Diesel |
| Four-wheel drive | ja |
| Ground clearance | 0,31 m |
| Rotating work basket | ja |
| Swivel range | endless |
| Basket arm | ja |
| Driving licence | only with personnel |
| Special features | Extremely maneuverable due to four steerable axles, automatic outrigger system, home function, chassis data can be called up in the basket, Triflex cable for video transmission, complete 2nd control stand on the turret, can be telescoped up to 2.30 m, power lift system and glass vacuum |
