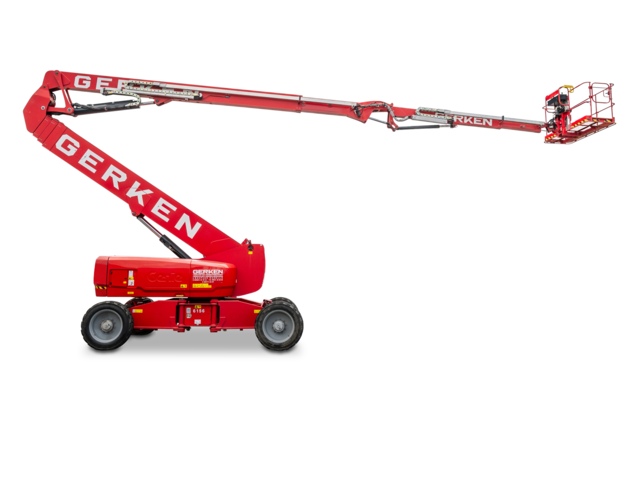

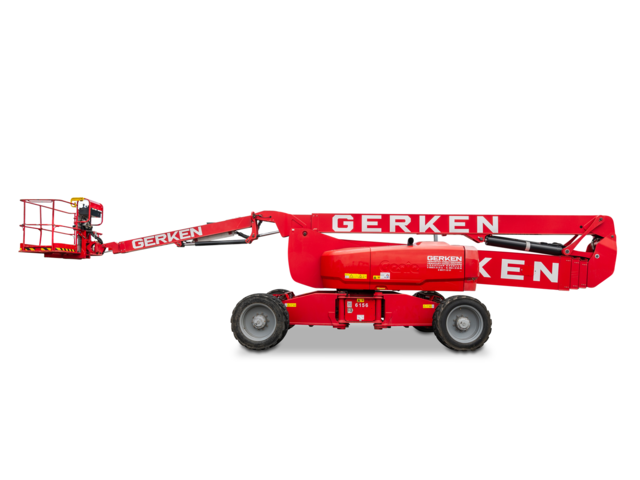

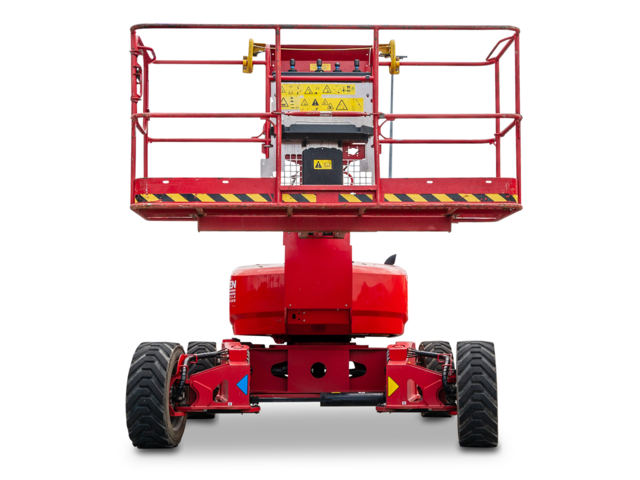

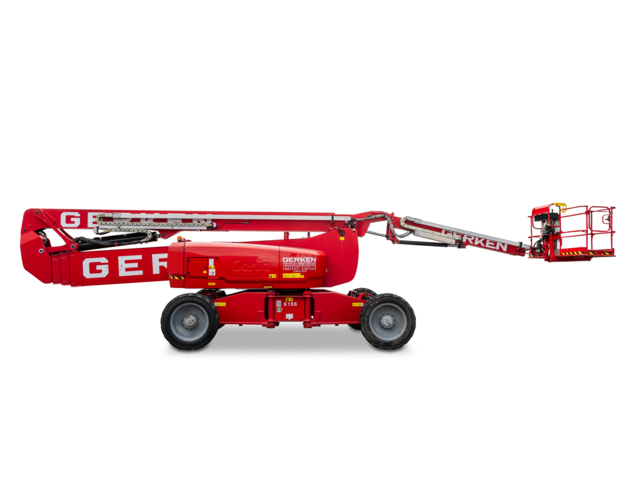

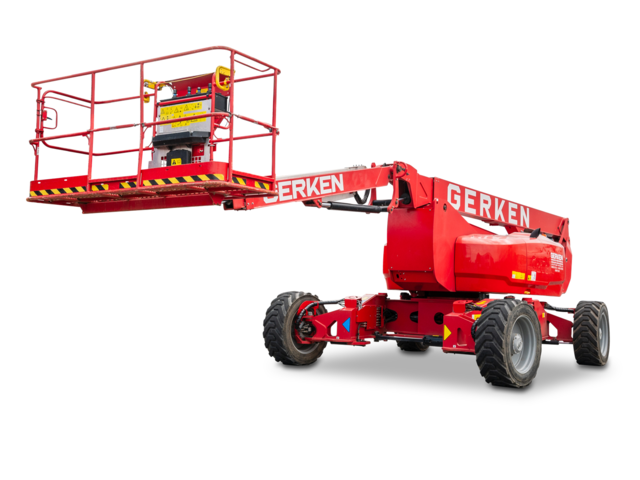

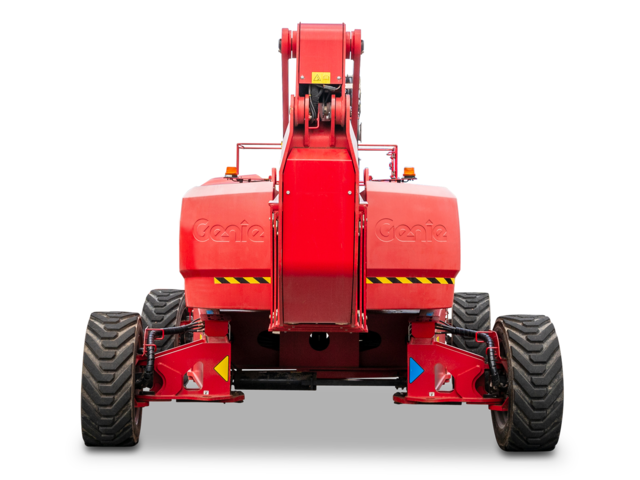

GG 430-25 AkLPRG
| Max. Working height | 42,30 m |
|---|---|
| Movable up to working height | 43,00 m |
| Max. Pitch angle | 45 % |
| Four-wheel drive | ja |
| Drive type | Diesel |
| Non-Marking | no |
| Construction width | 3,94 m |
| Overall dimensions LxWxH | 12.92 x 3.94 x 3.15 m |
| Ground clearance | 0,38 m |
| Transport position height | 3,15 m |
| Transport position length | 12,92 m |
| Surplus | 0,83 m |
| Dead weight | 21031 kg |
| Track widening | 3,51 m |
| Platform dimensions WxD | 2.44 x 0.92 m |
| Max. Basket load / Lifting load | 272 kg |
| Swing axle | ja |
| Soot particle filter | ja |
| Basket arm | ja |
| Swivel range | endless |
| Rotating work basket | ja |
| Max. lateral reach | 21,97 m |
| Special features | Extremely favorable working diagram, telescoping cage boom, generator, 4-wheel steering |
