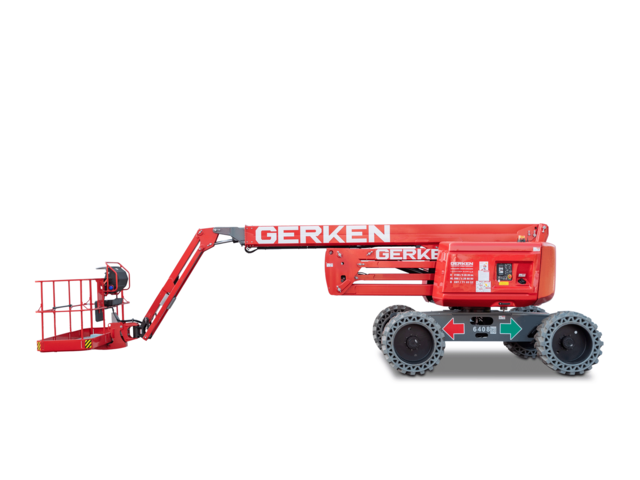

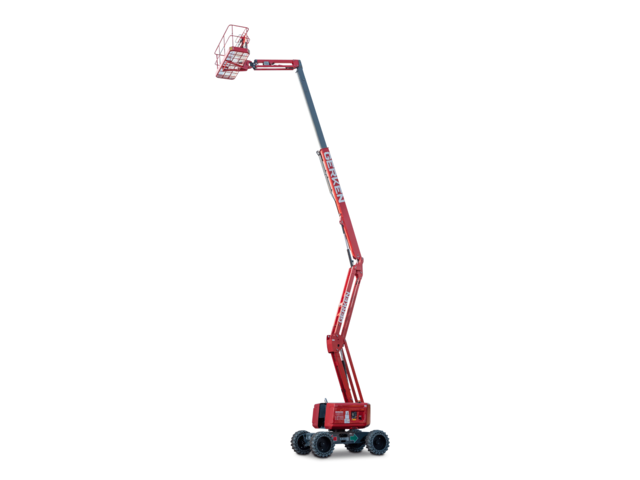

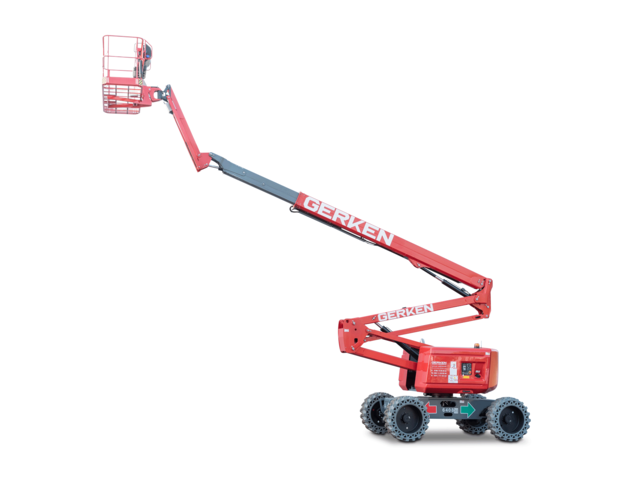

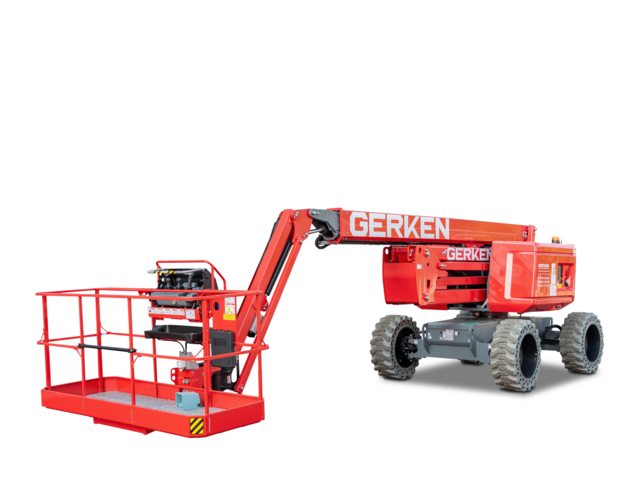

GG 208-24 WAkLP
| Max. Working height | 20,79 m |
|---|---|
| Movable up to working height | 20,79 m |
| Max. Pitch angle | 45% |
| Four-wheel drive | ja |
| Drive type | Diesel |
| Non-Marking | ja |
| Construction width | 2,43 m |
| Overall dimensions LxWxH | 8.85 x 2.43 x 2.52 m |
| Ground clearance | 0,29 m |
| Transport position height | 2,98 m |
| Transport position length | 6,40 m |
| Surplus | 0,16 m |
| Dead weight | 9600 kg |
| Track widening | – |
| Platform dimensions WxD | 2.41 x 0.90 m |
| Max. Basket load / Lifting load | 230 kg |
| Swing axle | ja |
| Basket arm | ja |
| Swivel range | 360° |
| Rotating work basket | ja/180° ja/180° ja/180° ja/180° ja/180° ja/180° ja/180 |
| Max. lateral reach | 12,72 m |
