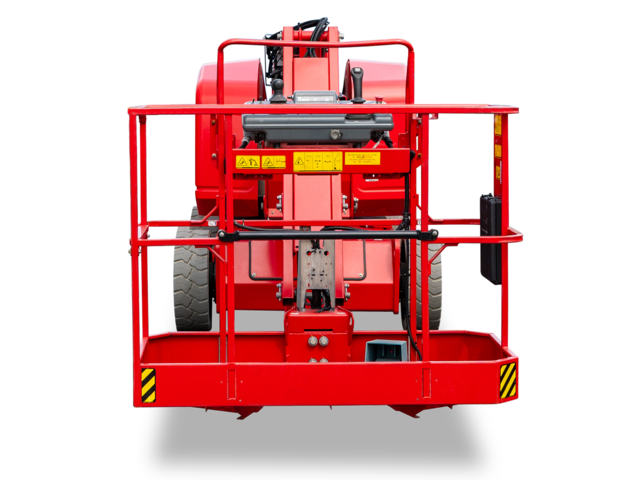

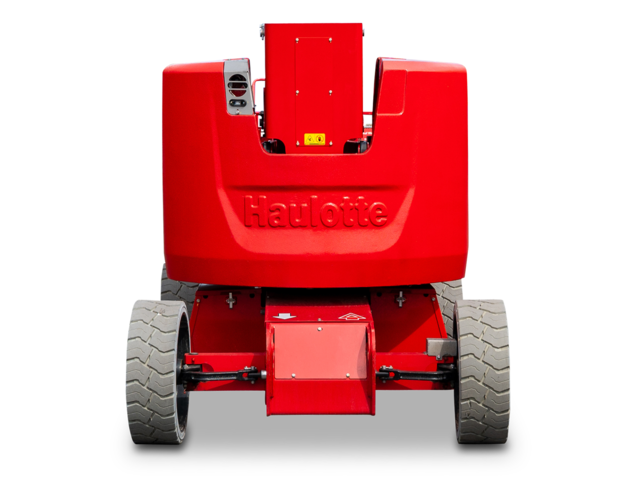

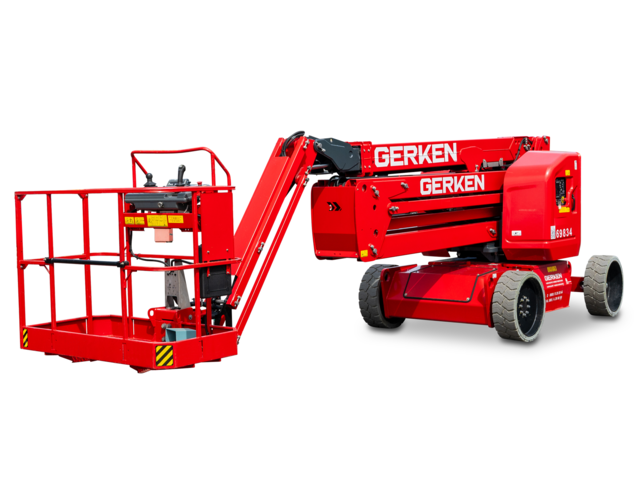

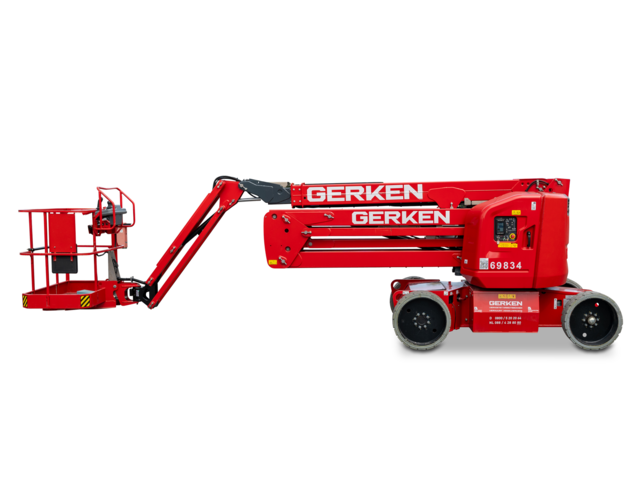

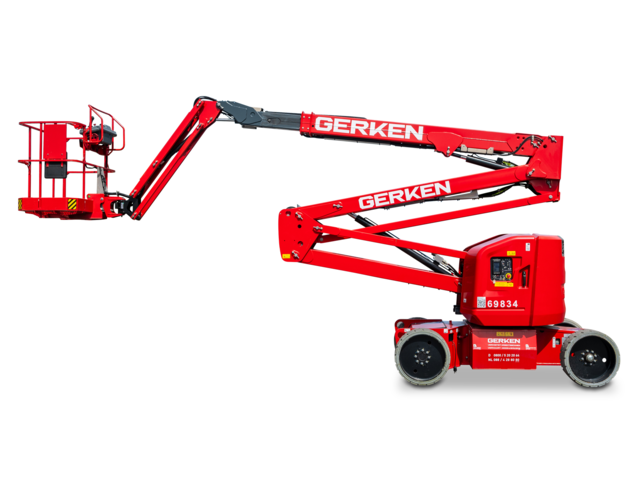

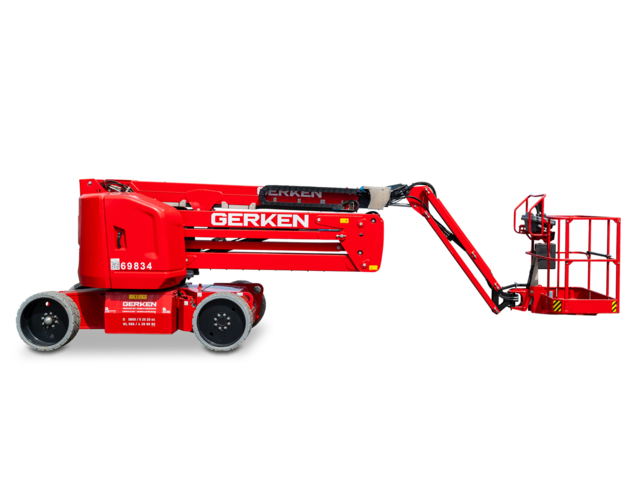

GG 161-18 Wk
| Max. Working height | 16,12 m |
|---|---|
| Movable up to working height | 14,12 m |
| Max. Pitch angle | 25 % |
| Four-wheel drive | no |
| Drive type | Batterie |
| Non-Marking | ja |
| Construction width | 1,76 m |
| Overall dimensions LxWxH | 6.53 x 1.76 x 2.00 m |
| Ground clearance | 0,14 m |
| Transport position height | 2,00 m |
| Transport position length | 6,53 m |
| Dead weight | 6900 kg |
| Platform dimensions WxD | 1.49 x 1.00 m |
| Max. Basket load / Lifting load | 230 kg |
| Swing axle | no |
| Basket arm | ja |
| Swivel range | +/- 355° |
| Rotating work basket | ja |
| Max. lateral reach | 8,87 m |
