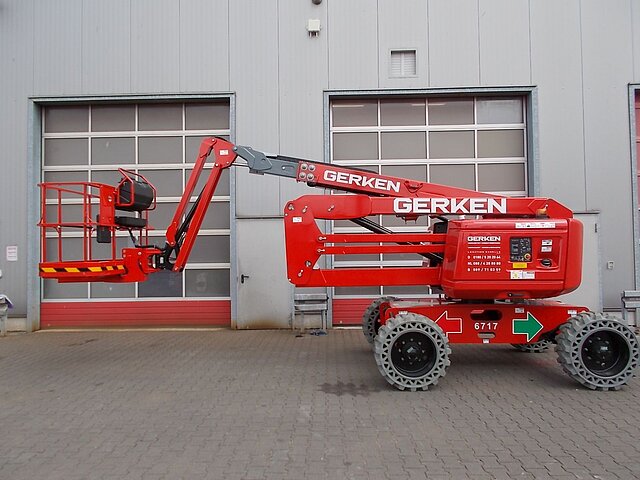

GG 160-23 WAkR
| Max. Working height | 16,01 m |
|---|---|
| Movable up to working height | 16,01 m |
| Max. Pitch angle | 45% |
| Four-wheel drive | ja |
| Drive type | Diesel |
| Non-Marking | ja |
| Construction width | 2,30 m |
| Overall dimensions LxWxH | 6.73 x 2.30 x 2.27 m |
| Ground clearance | 0,24 m |
| Transport position height | 2,42 m |
| Transport position length | 5,09 m |
| Surplus | 0,09 m |
| Dead weight | 6200 kg |
| Track widening | - |
| Platform dimensions WxD | 1.80 x 0.78 m |
| Max. Basket load / Lifting load | 230 kg |
| Swing axle | no |
| Soot particle filter | ja |
| Basket arm | ja |
| Swivel range | 355° |
| Rotating work basket | ja |
| Max. lateral reach | 8,74 m |
