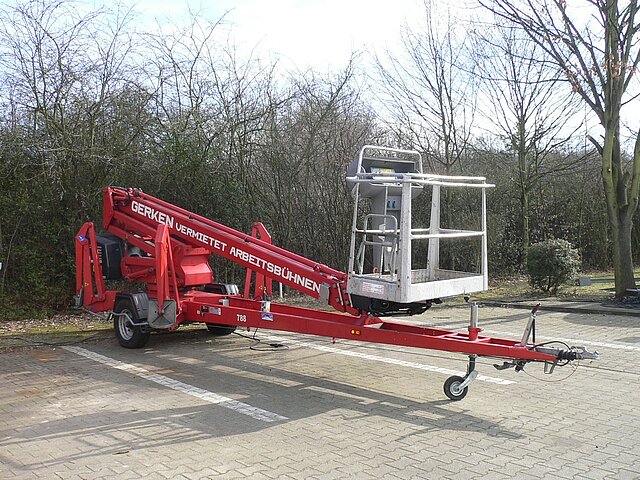

GA 21 G
| Max. Working height | 20,70 m |
|---|---|
| Max. lateral reach | 11,00 m |
| Max. Basket load / Lifting load | 215 kg |
| Overall dimensions LxWxH | 7.90 x 1.89 x 2.25 m |
| Transport position length | 7,90 m |
| Construction width | 1,89 m |
| Transport position height | 2,25 m |
| Drive type | 230 V / diesel |
| Dead weight | 2440 kg |
| Max. Platform height | 18,70 m |
| Platform dimensions LxW | 1,40 x 1,00 m |
| Supports | ja |
| Support pressure max. | 18 kN |
| Support load | 75 kg kg |
| Support width on both sides | 4,33 m |
| Support diagonal | - |
| Support length | 3,94 m |
| Ground clearance | 0,20 m |
| Rotating work basket | ja |
| Basket arm, rotation angle | no- |
| Indoor use only | no |
| Shunting drive | ja |
| Swivel range | endless |
| Special features | Option of electric or diesel drive |
