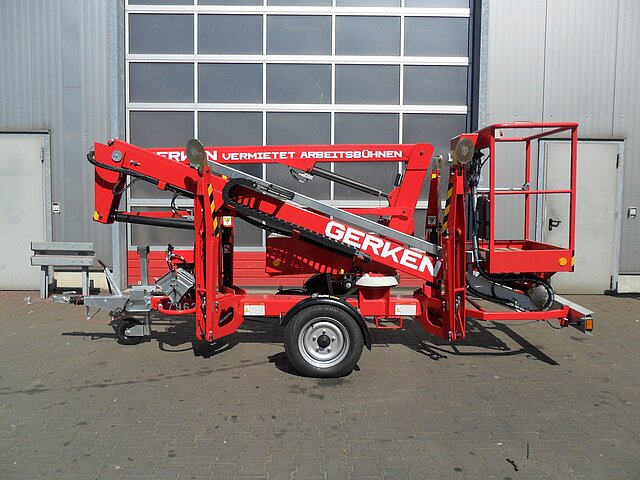

GA 12 H
| Max. Working height | 12,37 m |
|---|---|
| Max. lateral reach | 6,10 m |
| Max. Basket load / Lifting load | 200 kg |
| Overall dimensions LxWxH | 4,59 x 1,56/1,10* x 1,93 m |
| Transport position length | 4,59 m |
| Construction width | 1,56 m |
| Transport position height | 1,93 m |
| Drive type | 230 V |
| Dead weight | 1340 kg |
| Max. Platform height | 10,37 m |
| Platform dimensions LxW | 1,10 x 0,67 m |
| Supports | ja |
| Support pressure max. | 9.4 kN |
| Support load | 75 kg kg |
| Support width on both sides | 3,54 m |
| Support diagonal | 5,03 m |
| Support length | 3,70 m |
| Ground clearance | 0,21 m |
| Rotating work basket | no |
| Basket arm, rotation angle | no |
| Indoor use only | no |
| Shunting drive | no |
| Swivel range | 2x190° |
| Special features | Low dead weight, * removable telescopic axle and lighting strip, which changes the width of the device to 1.10 m to allow access through double door openings, for example Compact design |
