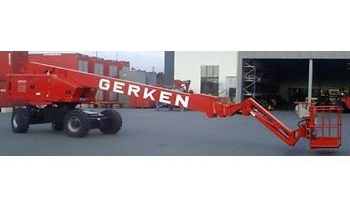

GT 230-24 AkP
Max. Working height23,30 m
Max. Basket load / Lifting load250 kg
Drive typeDiesel
Price on request
Secure online payment:
PayPal
Invoice
Certified by Trusted Shops!
Data sheet
|
Max. Working height
|
23,30 m |
|---|---|
|
Movable up to working height
|
23,30 m |
|
Max. Pitch angle
|
45° |
|
Four-wheel drive
|
ja |
|
Drive type
|
Diesel |
|
Non-Marking
|
no |
|
Overall dimensions LxWxH
|
12.00 x 4.42 x 2.65 m |
|
Transport position length
|
12,00 m |
|
Construction width
|
2,42 m |
|
Transport position height
|
2,65 m |
|
Ground clearance
|
0,24 m |
|
Surplus
|
1.14 |
|
Dead weight
|
14700 kg |
|
Platform dimensions WxD
|
1,94 x 0,87 |
|
Max. Platform height
|
21,30 m |
|
Max. Basket load / Lifting load
|
250 kg |
|
Swing axle
|
ja |
|
Basket arm
|
ja |
|
Swivel range
|
endless |
|
Rotating work basket
|
ja |
|
Max. lateral reach
|
17,90 m |
|
Special features
|
